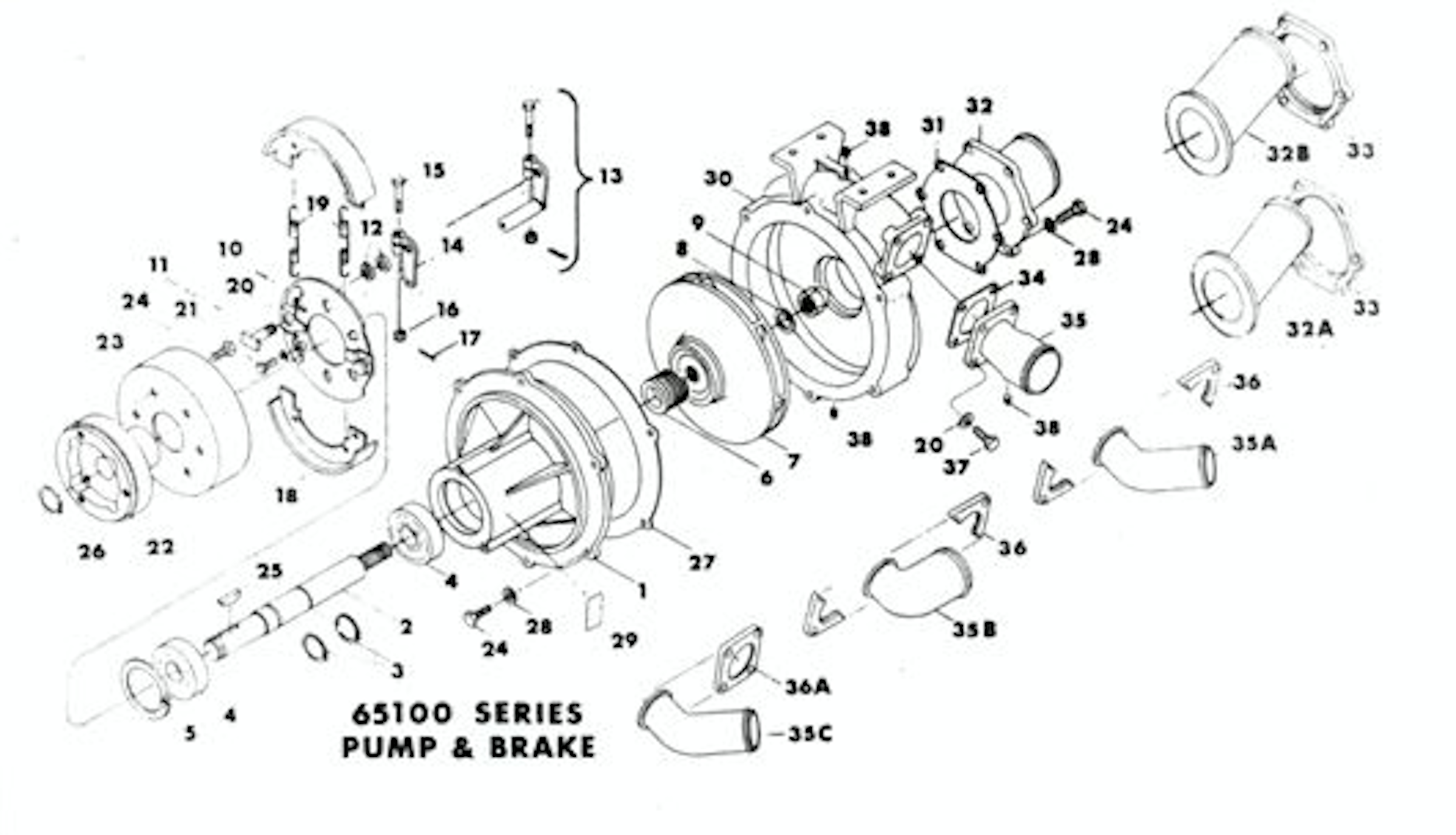

Agrinautics 65100 2-Inch Case-Mounted Pumps INDIVIDUAL PARTS/DIAGRAM - Small Aircraft

---

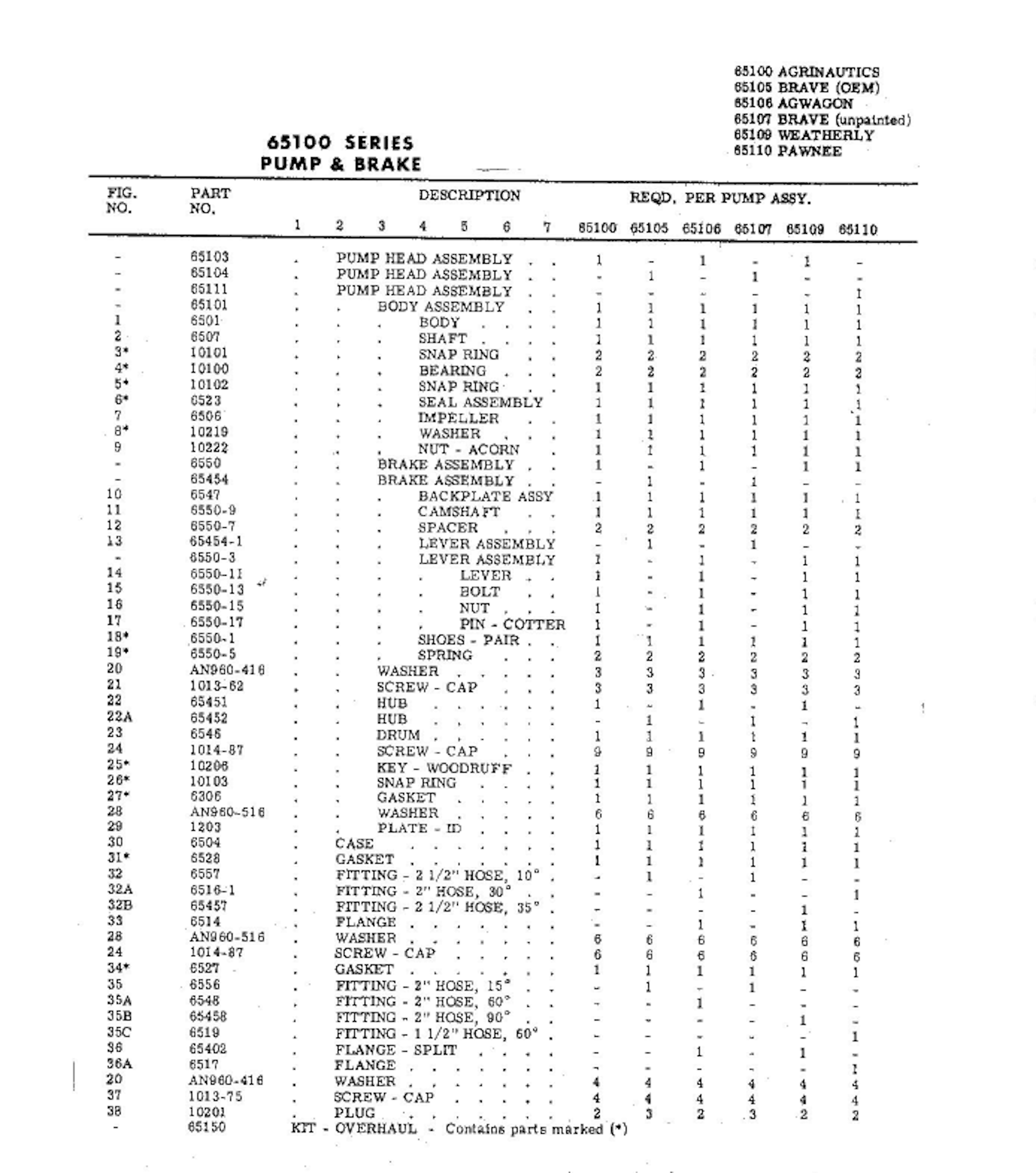

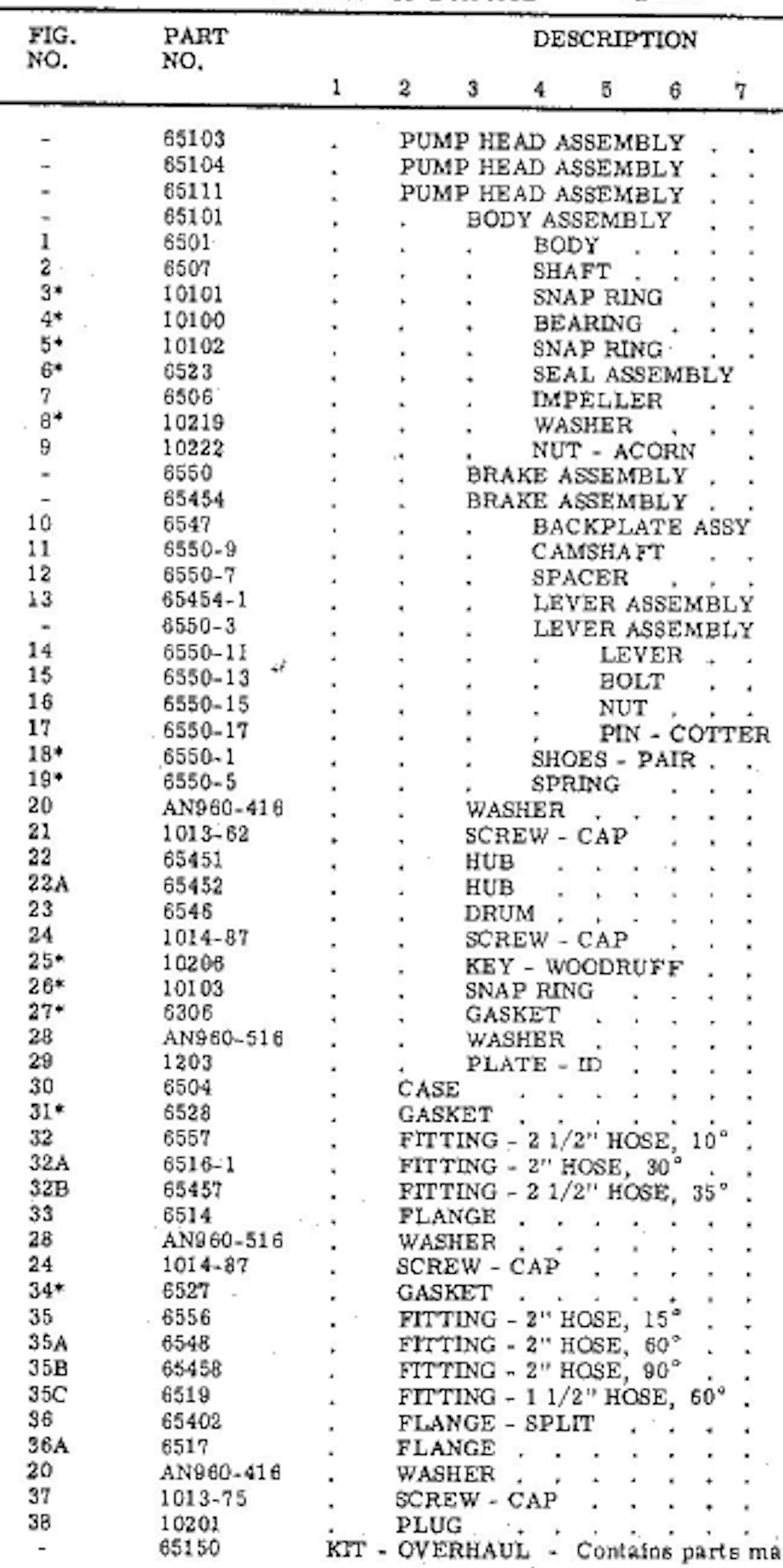

Part - – 65103 – PUMP HEAD ASSEMBLY - – 65104 – PUMP HEAD ASSEMBLY - – 65111 – PUMP HEAD ASSEMBLY - – 65101 – BODY ASSEMBLY 1 – 6501 – BODY 2 – 6507 – SHAFT 3* – 10101 – SNAP RING 4* – 10100 – BEARING 5* – 10102 – SNAP RING 6* – 6523 – SEAL ASSEMBLY 7 – 6506 – IMPELLER 8* – 10219 – WASHER 9 – 10222 – NUT - ACORN - – 6550 – BRAKE ASSEMBLY - – 65454 – BRAKE ASSEMBLY 10 – 6547 – BACKPLATE ASSY 11 – 6550-9 – CAMSHAFT 12 – 6550-7 – SPACER 13 – 65454-1 – LEVER ASSEMBLY - – 6550-3 – LEVER ASSEMBLY 14 – 6550-11 – LEVER 15 – 6550-13 – BOLT 16 – 6550-15 – NUT 17 – 6550-17 – PIN - COTTER 18* – 6550-1 – SHOES - PAIR 19* – 6550-5 – SPRING 20 – AN960-416 – WASHER 21 – 1013-62 – SCREW - CAP 22 – 65451 – HUB 22A – 65452 – HUB 23 – 6546 – DRUM 24 – 1014-87 – SCREW - CAP 25* – 10208 – KEY - WOODRUFF 26* – 10103 – SNAP RING 27* – 6306 – GASKET 28 – AN960-516 – WASHER 29 – 1203 – PLATE - ID 30 – 6504 – CASE 31* – 6528 – GASKET 32 – 6557 – FITTING - 2 1/2" HOSE, 10° 32A – 6516-1 – FITTING - 2" HOSE, 30° 32B – 65457 – FITTING - 2 1/2" HOSE, 35° 33 – 6514 – FLANGE 34* – 6527 – GASKET 35 – 6556 – FITTING - 2" HOSE, 15° 35A – 6548 – FITTING - 2" HOSE, 60° 35B – 65458 – FITTING - 2" HOSE, 90° 35C – 6519 – FITTING - 1 1/2" HOSE, 60° 36 – 65402 – FLANGE - SPLIT 36A – 6517 – FLANGE 37 – 1013-75 – SCREW - CAP 38 – 10201 – PLUG - – 65150 – KIT - OVERHAUL

- – 65103 – PUMP HEAD ASSEMBLY - $1,181.61 USD - – 65104 – PUMP HEAD ASSEMBLY - $1,209.81 USD - – 65111 – PUMP HEAD ASSEMBLY - $1,181.61 USD - – 65101 – BODY ASSEMBLY - $997.56 USD 1 – 6501 – BODY - $550.00 USD 2 – 6507 – SHAFT - $350.00 USD 3* – 10101 – SNAP RING - $5.19 USD 4* – 10100 – BEARING - $61.31 USD 5* – 10102 – SNAP RING - $5.62 USD 6* – 6523 – SEAL ASSEMBLY - $100.00 USD 7 – 6506 – IMPELLER - $320.00 USD 8* – 10219 – WASHER - $4.40 USD 9 – 10222 – NUT - ACORN - $27.77 USD - – 6550 – BRAKE ASSEMBLY - $75.00 USD - – 65454 – BRAKE ASSEMBLY - $55.00 USD 10 – 6547 – BACKPLATE ASSY - $0.00 USD 11 – 6550-9 – CAMSHAFT - $45.00 USD 12 – 6550-7 – SPACER - $0.00 USD 13 – 65454-1 – LEVER ASSEMBLY - $52.78 USD - – 6550-3 – LEVER ASSEMBLY - $25.00 USD 14 – 6550-11 – LEVER - $0.00 USD 15 – 6550-13 – BOLT - $0.00 USD 16 – 6550-15 – NUT - $0.00 USD 17 – 6550-17 – PIN - COTTER - $0.00 USD 18* – 6550-1 – SHOES - PAIR - $75.00 USD 19* – 6550-5 – SPRING - $10.00 USD 20 – AN960-416 – WASHER - $0.00 USD 21 – 1013-62 – SCREW - CAP - $0.00 USD 22 – 65451 – HUB - $226.15 USD 22A – 65452 – HUB - $208.36 USD 23 – 6546 – DRUM - $90.00 USD 24 – 1014-87 – SCREW - CAP - $0.00 USD 25* – 10208 – KEY - WOODRUFF - $0.00 USD 26* – 10103 – SNAP RING - $5.90 USD 27* – 6306 – GASKET - $10.00 USD 28 – AN960-516 – WASHER - $0.00 USD 29 – 1203 – PLATE - ID - $0.00 USD 30 – 6504 – CASE - $470.00 USD 31* – 6528 – GASKET - $10.00 USD 32 – 6557 – FITTING - 2 1/2" HOSE, 10° - $75.00 USD 32A – 6516-1 – FITTING - 2" HOSE, 30° - $75.00 USD 32B – 65457 – FITTING - 2 1/2" HOSE, 35° - $95.82 USD 33 – 6514 – FLANGE - $50.00 USD 34* – 6527 – GASKET - $10.00 USD 35 – 6556 – FITTING - 2" HOSE, 15° - $90.00 USD 35A – 6548 – FITTING - 2" HOSE, 60° - $90.00 USD 35B – 65458 – FITTING - 2" HOSE, 90° - $95.82 USD 35C – 6519 – FITTING - 1 1/2" HOSE, 60° - $90.00 USD 36 – 65402 – FLANGE - SPLIT - $36.50 USD 36A – 6517 – FLANGE - $50.00 USD 37 – 1013-75 – SCREW - CAP - Sold Out 38 – 10201 – PLUG - Sold Out - – 65150 – KIT - OVERHAUL - Sold Out
