Fittings Collection – NPT Pipe Thread & AN/JIC Flare Guide

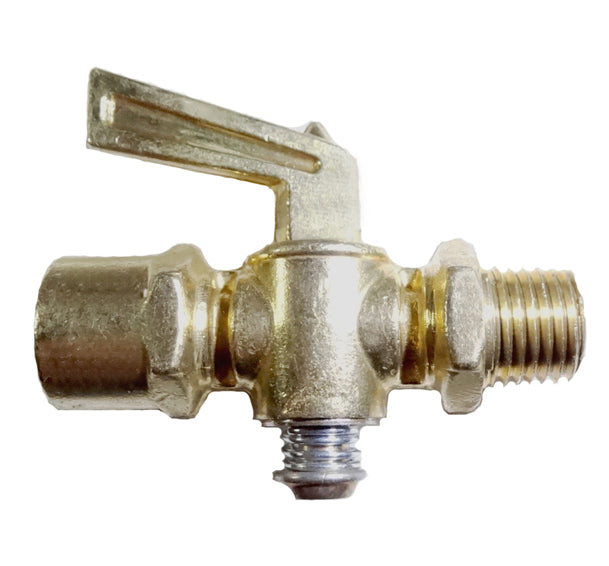

Welcome to our complete selection of fittings for agricultural aviation, fuel systems, hydraulics, and spray equipment. This collection includes NPT pipe-thread fittings, AN/JIC flare fittings, elbows, tees, adapters, hose barbs, reducers, and more—everything needed to plumb pumps, booms, fuel lines, and hydraulic components.

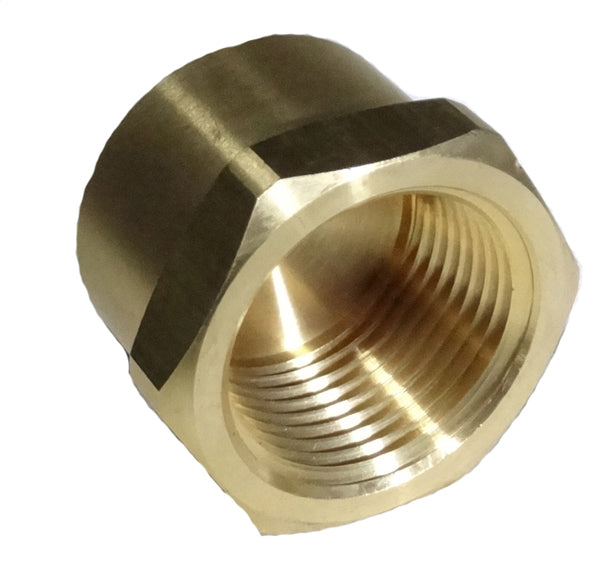

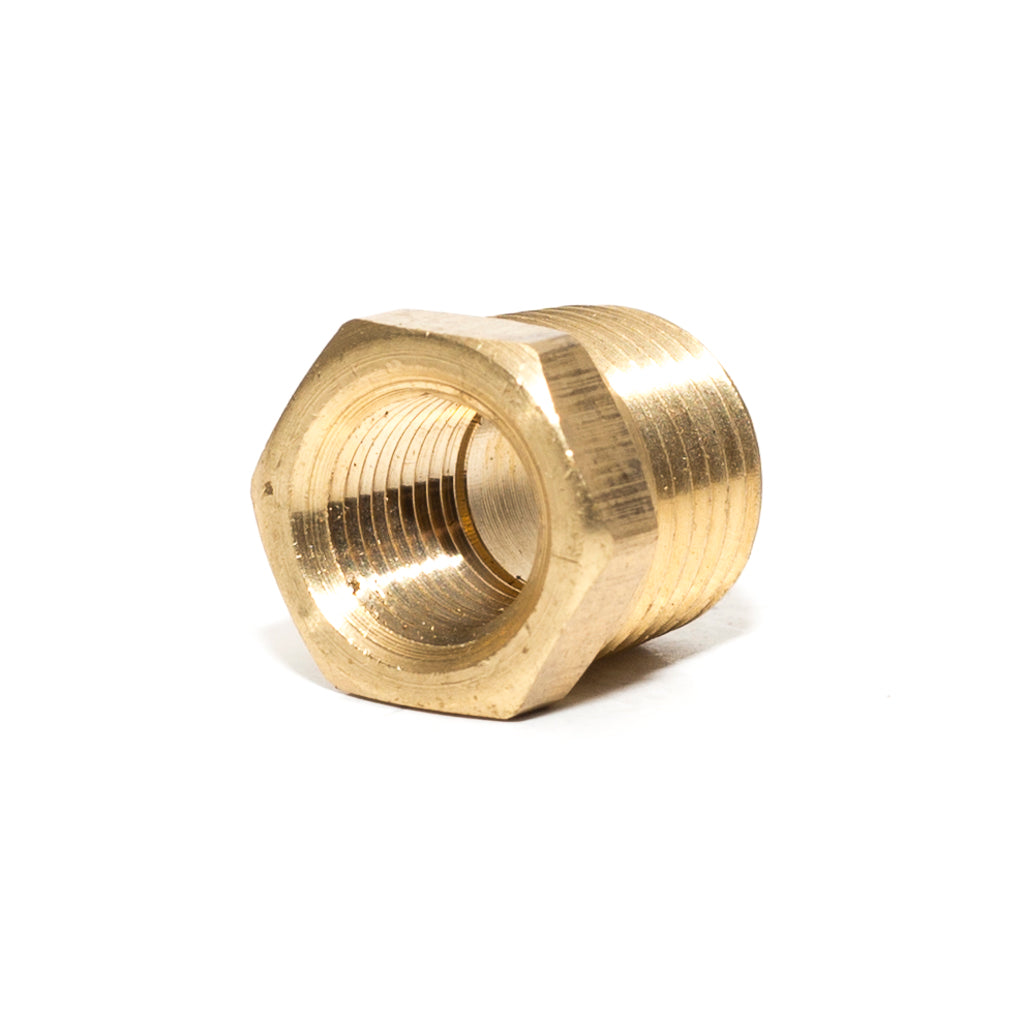

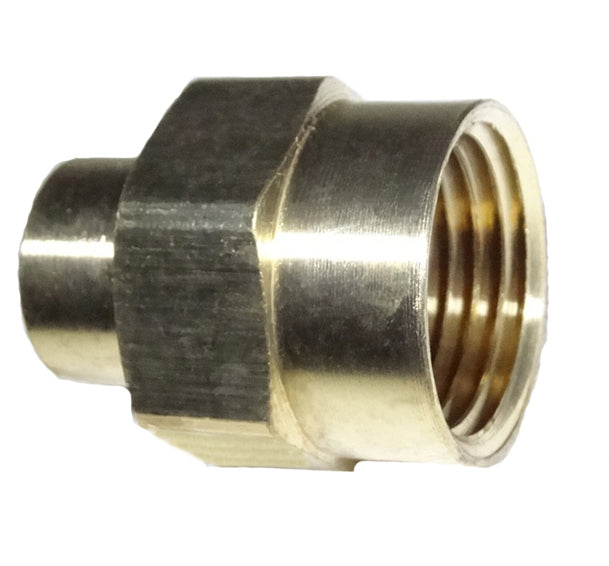

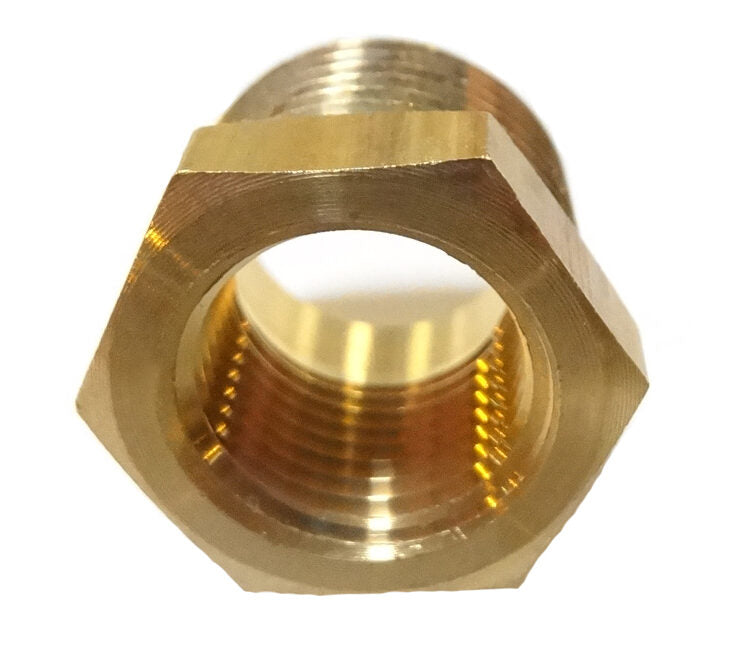

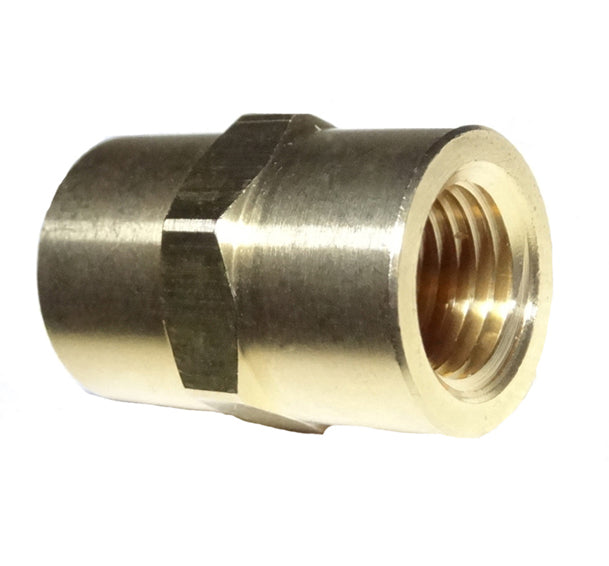

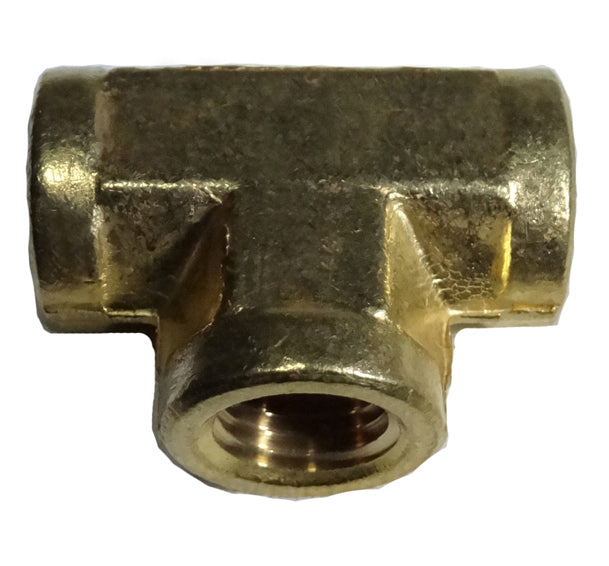

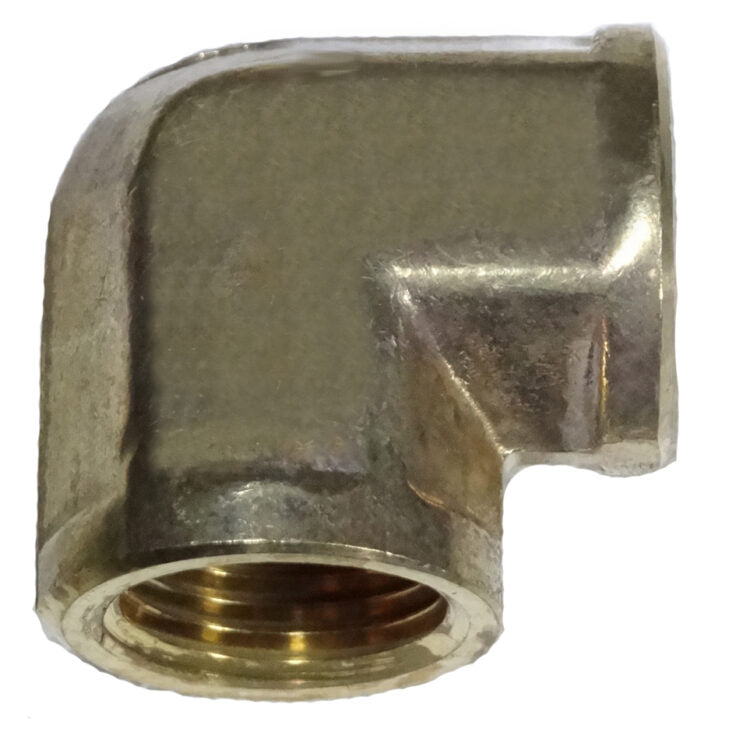

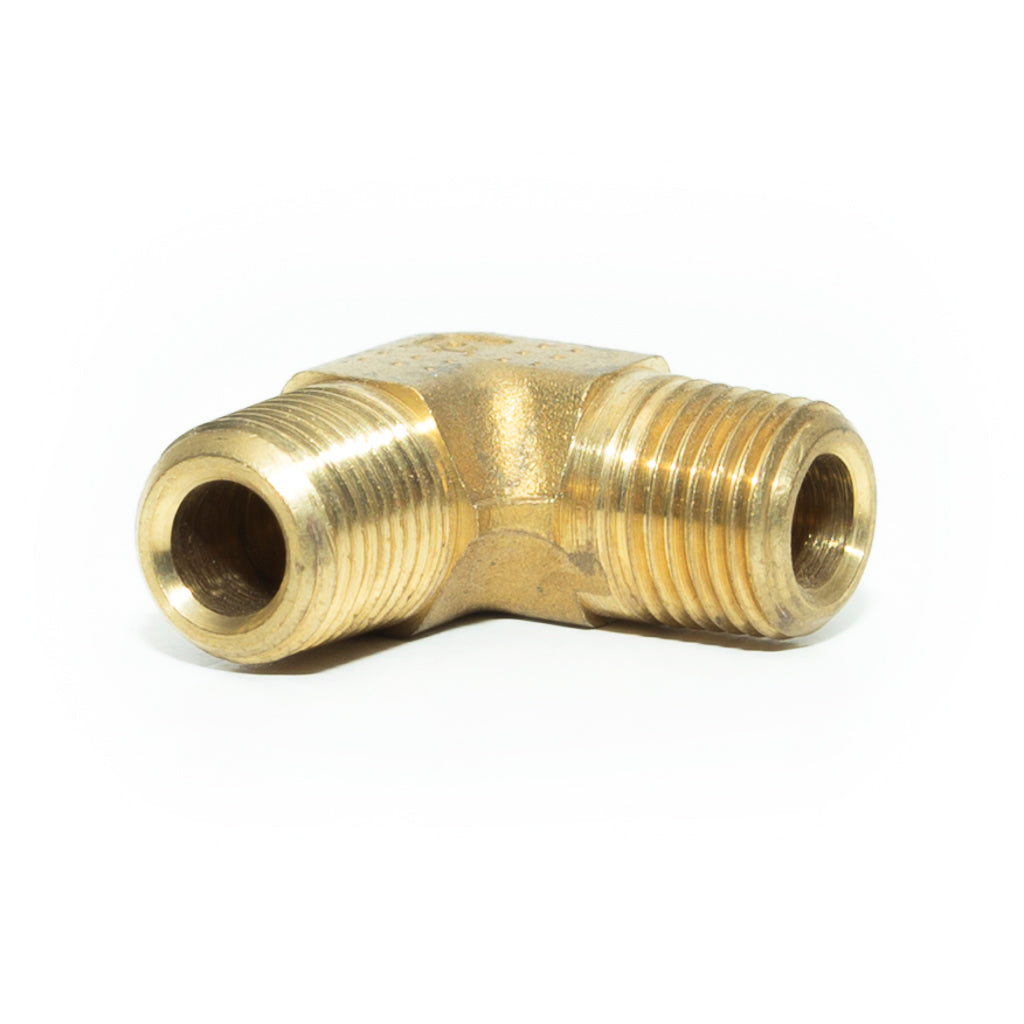

Understanding NPT Pipe Thread Sizes

NPT sizes do not match the actual outside diameter of the threads. This is the most common reason fittings get ordered incorrectly.

NPT sizes (1/4", 3/8", 1/2", etc.) refer to the inside diameter of the pipe, not the diameter of the male threads.

Approximate actual thread diameters:

1/4" NPT → ~0.54" OD
3/8" NPT → ~0.675" OD
1/2" NPT → ~0.84" OD
3/4" NPT → ~1.05" OD

NPT threads are tapered, meaning they seal by tightening into the taper and require thread sealant or PTFE tape.

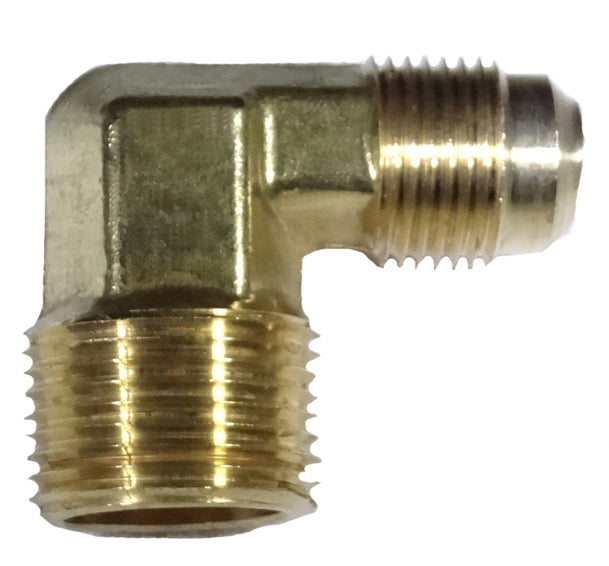

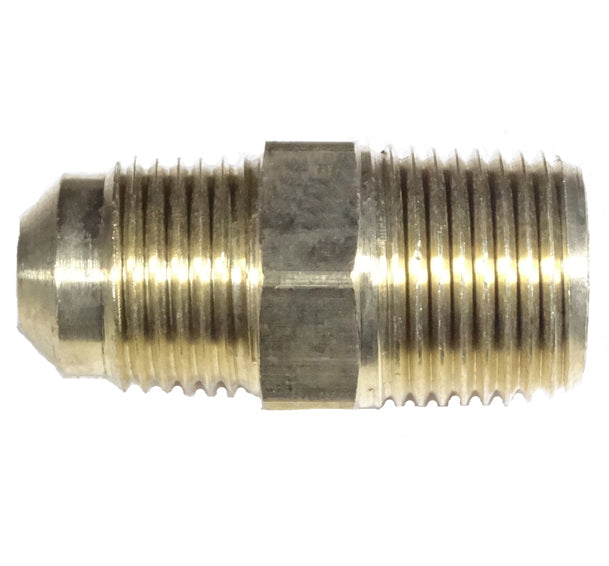

Understanding AN/JIC Flare Fittings

Flare fittings (AN or JIC) use a 37° metal-to-metal flare to seal—NOT the threads. They are straight threads and do not require tape or sealant.

Common AN/JIC sizes:

-4 (1/4") → approx. 7/16" thread OD
-6 (3/8") → approx. 9/16" thread OD
-8 (1/2") → approx. 3/4" thread OD
-10 (5/8") → approx. 7/8" thread OD

AN sizes refer to the inside diameter of the tubing, not the outside diameter of the fitting threads.

How to Identify Your Fitting Type

For NPT: measure thread OD and compare to the chart (it will not match the named size)
For AN/JIC: look for a 37° flare seat and measure thread OD
NPT is tapered; AN/JIC is straight-thread
NPT uses sealant; AN/JIC does not

Why This Matters

Knowing whether you're working with NPT or AN/JIC prevents mismatched fittings, leaks, and confusion. This collection includes the correct fittings for:
