Craft AG LF-5 Laminar Flow Straight Stream Nozzle
The Craft AG LF-5 is a laminar flow, straight-stream spray nozzle engineered for high-speed turbine agricultural aircraft operating from 140 to 200 MPH. Designed to deliver exceptional droplet control, large VMD output, and reduced drift, the LF-5 is ideal for fertilizer, nitrogen-based products, and high-performance aerial application.
The LF-5 features five selectable orifice sizes plus a positive shutoff position, allowing operators to instantly adjust flow rates from 1–10 GPA while maintaining consistent boom pressure and coverage. Clear witness marks on the body, orifice plate, and deflector enable quick, tool-free adjustments.
- Laminar flow straight-stream nozzle for turbine ag aircraft
- Optimized for 140–200 MPH operations

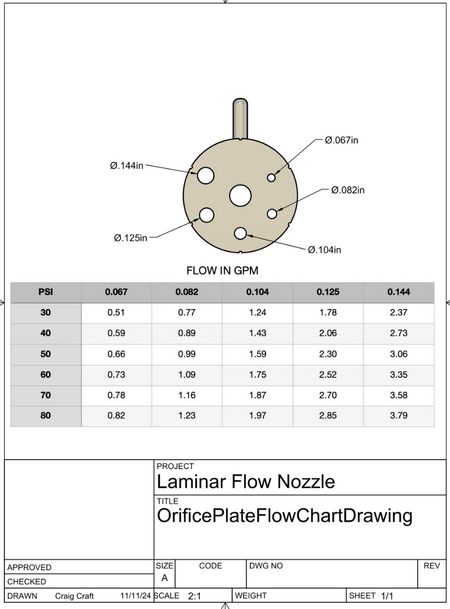

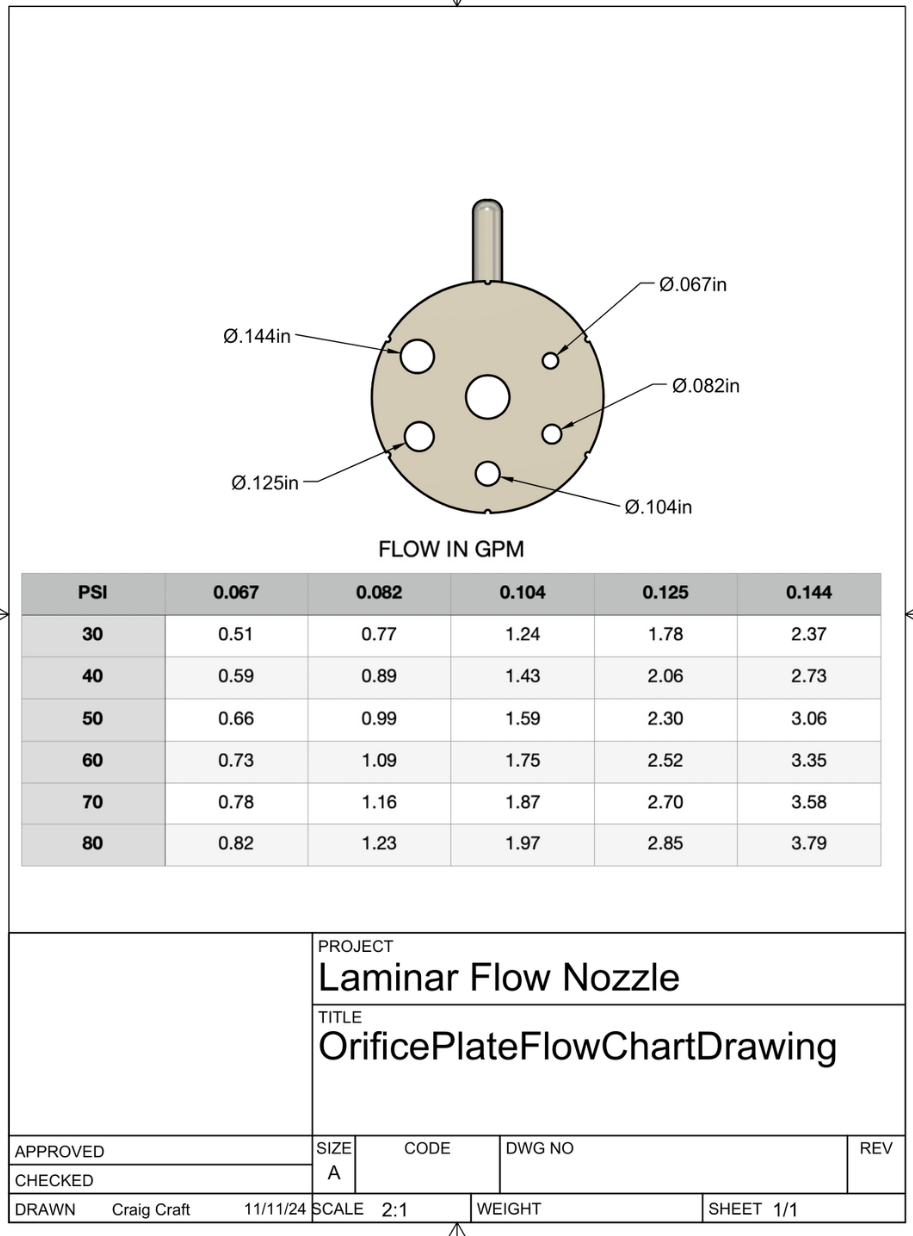

- Five selectable orifices plus OFF position
- Large droplet spectrum with tight CV
- Designed to reduce drift and fines, including nitrogen-based products
- Hard anodized aluminum with PTFE coating and chemical-resistant components
- Uses standard Viton O-ring seals (no proprietary parts)
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|
Aluminum Body / Poly Orifice / Poly Deflector

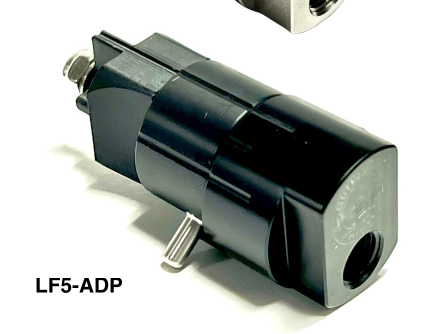

LF5-ADP
|
|
||
Stainless Body / Poly Orifice / Poly Deflector

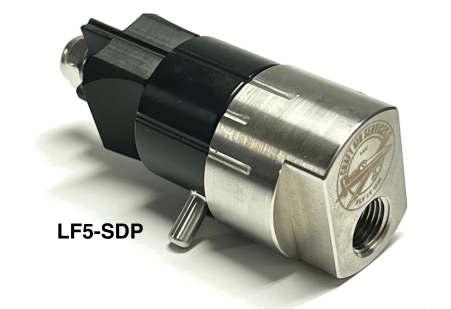

LF5-SDP
|
|
||
Aluminum Body / Stainless Orifice / Poly Deflector

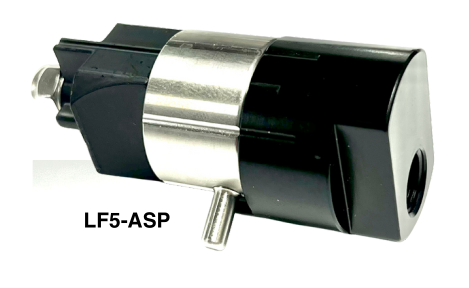

LF5-ASP
|
|
||
Stainless Body / Stainless Orifice / Poly Deflector

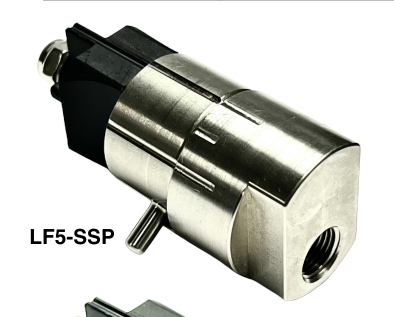

LF5-SSP
|
|
