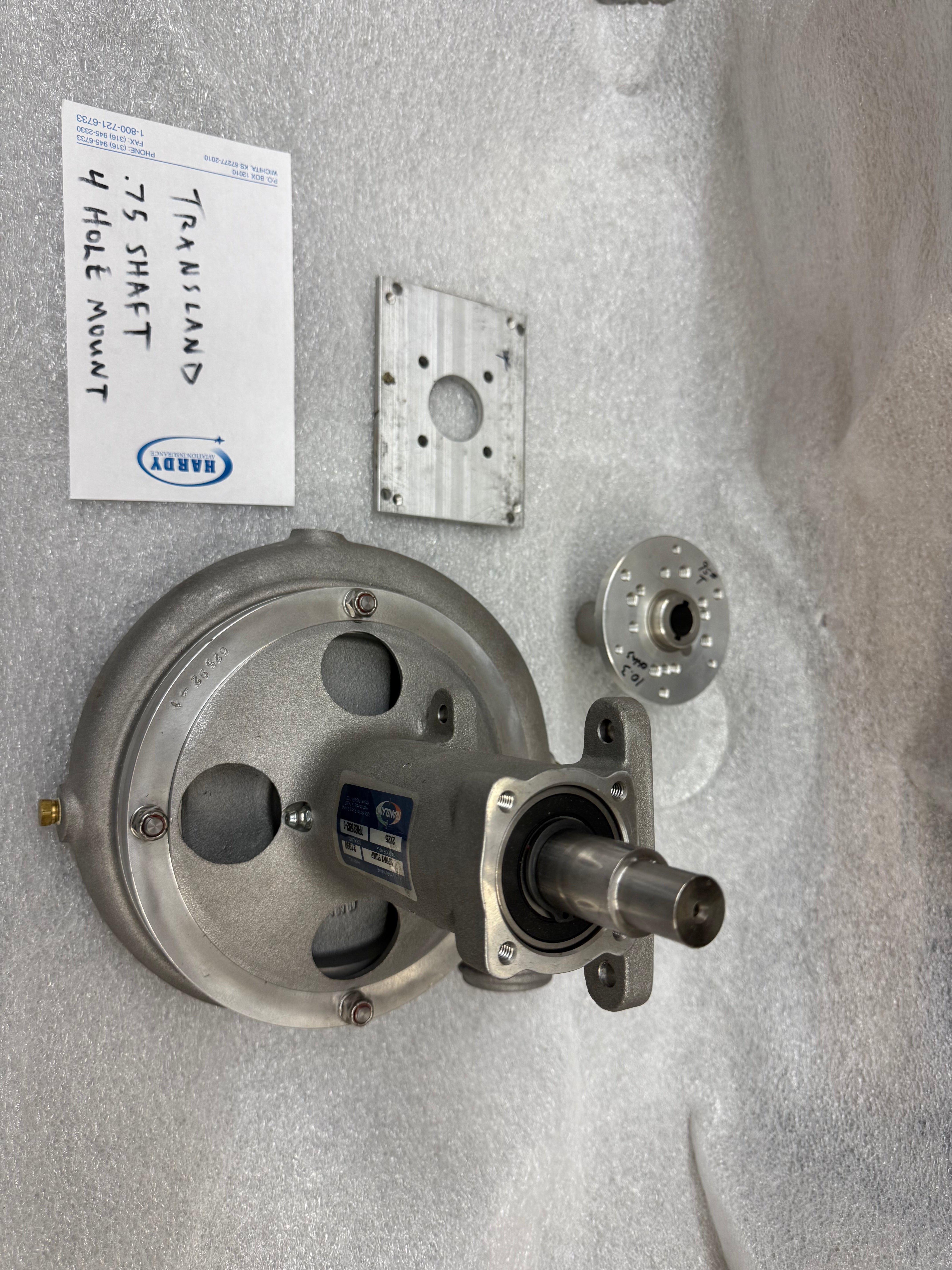

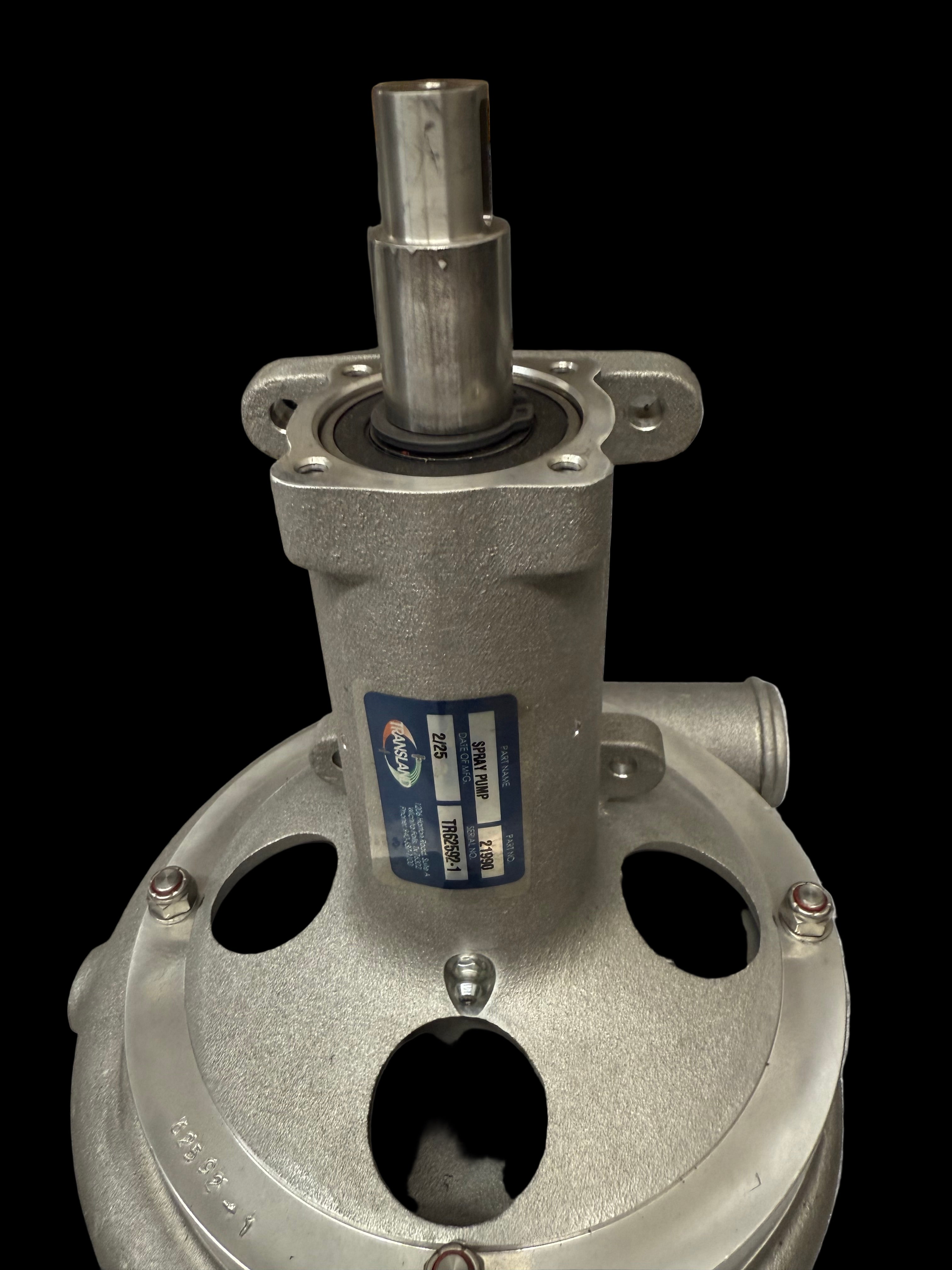

Transland 21992 – Aluminum 6½" Spray Pump Assembly PARTS DIAGRAM

SKU: 45500
(0)
In stock
Usually ships within 24 hours
$341.00
Selection

Ask an expert

Video chat Chat Email 1 701-636-5880

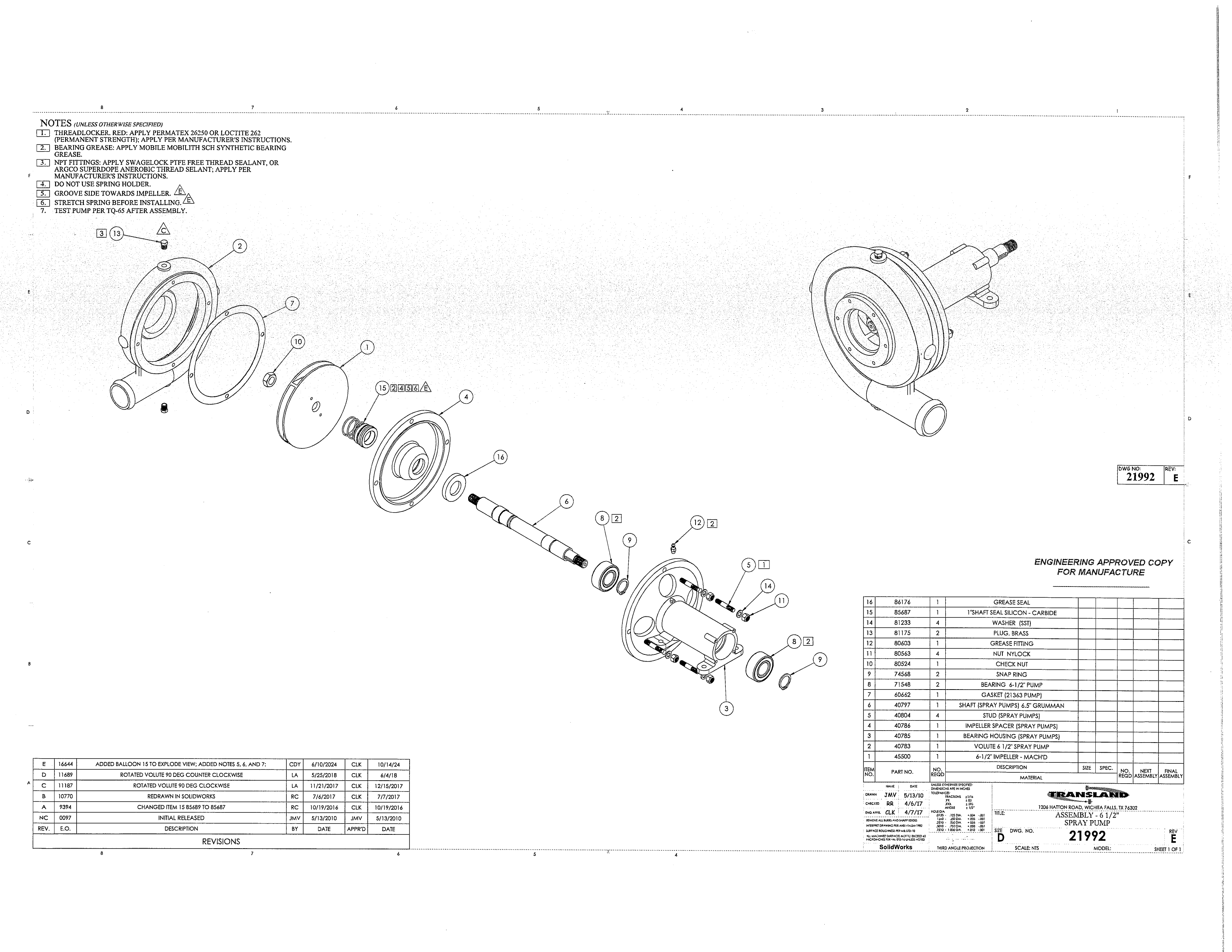

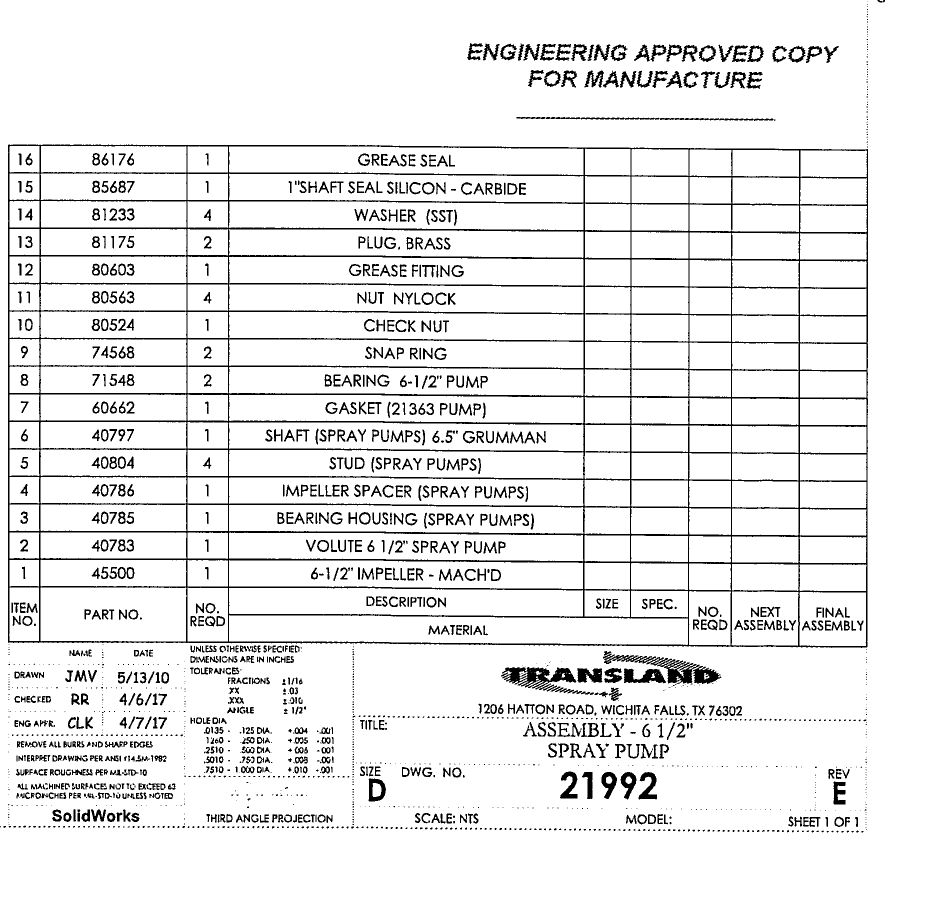

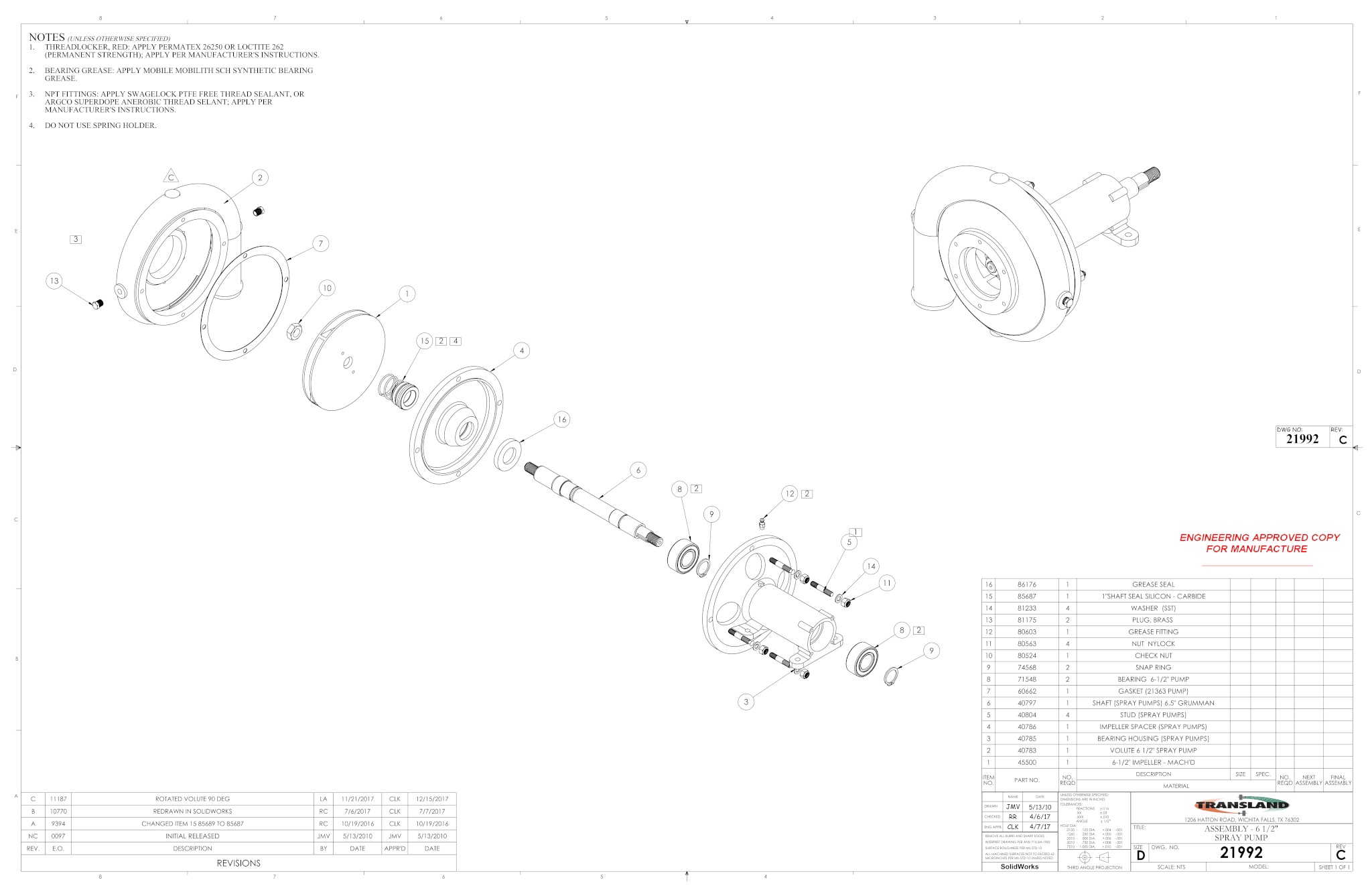

Parts list from Transland drawing 21992 (6½" Spray Pump). Listed in diagram order by reference number.

Bulk order

Variant Quantity Price Total
1 – 45500 – 6-1/2" Impeller – Mach'd 45500
$341.00
$0.00
$341.00
$0.00
2 – 40783 – Volute 6-1/2" Spray Pump 40783
$547.00
$0.00
$547.00
$0.00
3 – 40785 – Bearing Housing (Spray Pumps) 40785
$615.00
$0.00
$615.00
$0.00
4 – 40786 – Impeller Spacer (Spray Pumps) 40786
$321.00
$0.00
$321.00
$0.00
5 – 40804 – Stud (Spray Pumps) 40804
$30.25
$0.00
$30.25
$0.00
6 – 40797 – Shaft (Spray Pumps) 6.5" Grumman 40797
$477.00
$0.00
$477.00
$0.00
7 – 60662 – Gasket (21363 Pump) 60662
$7.92
$0.00
$7.92
$0.00
8 – 71548 – Bearing – 6-1/2" Pump 71548
$129.00
$0.00
$129.00
$0.00
9 – 74568 – Snap Ring 74568
$1.73
$0.00
$1.73
$0.00
10 – 80524 – Check Nut 80524
$25.54
$0.00
$25.54
$0.00
11 – 80563 – Nut Nylock 80563
$10.16
$0.00
$10.16
$0.00
12 – 80603 – Grease Fitting 80603
$4.90
$0.00
$4.90
$0.00
13 – 81175 – Plug, Brass 81175
$3.42
$0.00
$3.42
$0.00
14 – 81233 – Washer (SST) 81233
$1.32
$0.00
$1.32
$0.00
15 – 85687 – 1" Shaft Seal Silicon – Carbide 85687
$181.00
$0.00
$181.00
$0.00
16 – 86176 – Grease Seal 86176
$41.52
$0.00
$41.52
$0.00
17 - COMPLETE PUMP 21992
$2,000.00
$0.00
$2,000.00
$0.00
