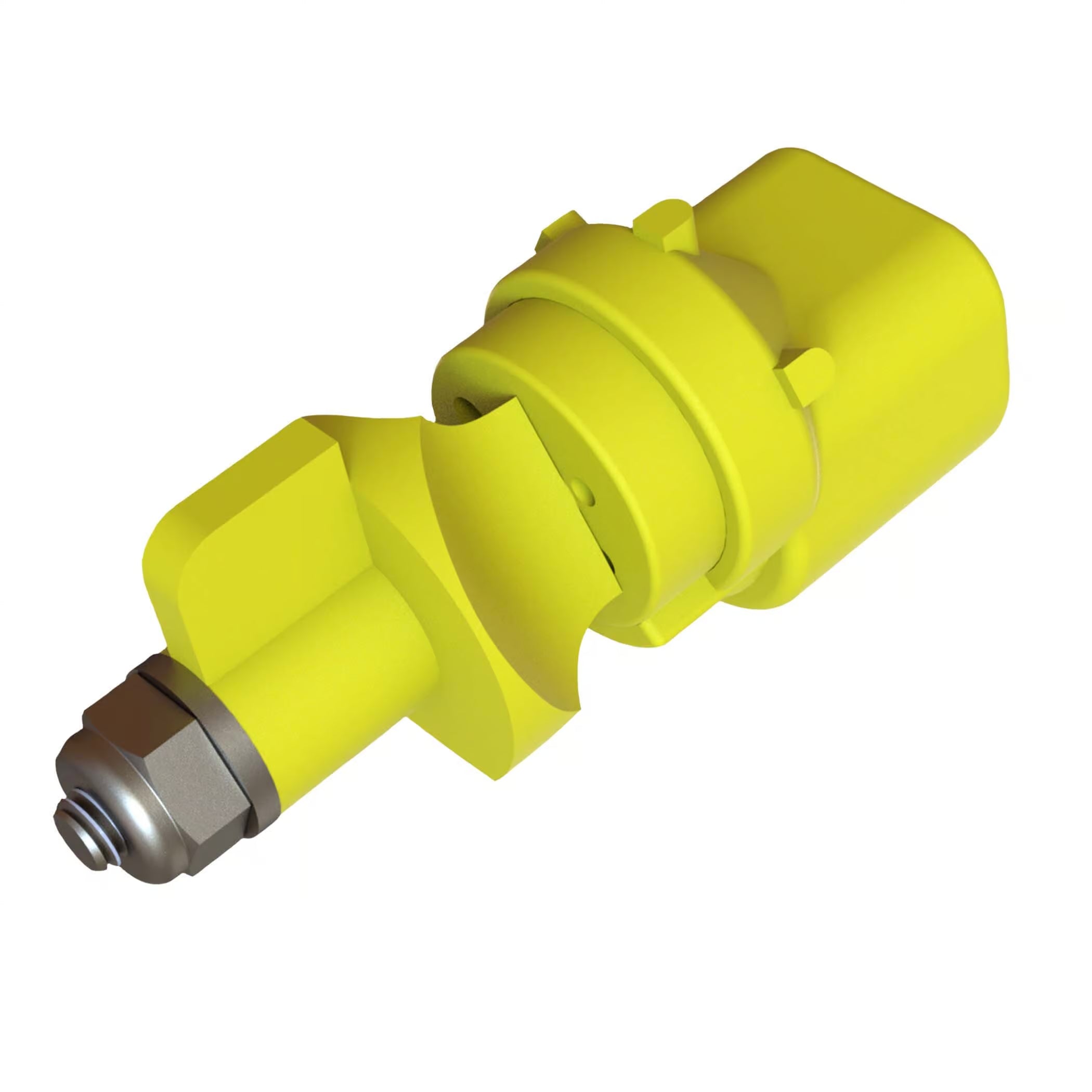

CP‑03‑05 Poly Aerial Nozzle with Five‑Orifice Selector (no shut‑off) and 3‑Way Deflector. The CP‑03 series is designed for aerial applications up to ~120 mph, covering droplet spectrums from very coarse to fine.
-
Selector Plate: 5 orifices (no shut‑off) — sizes
.062, .078, .093, .125, .172
-
Deflection planes (3‑Way): 30°, 55°, 90°
-
Body/Material: Poly aerial body
-
Typical operating speed: Up to ~120 mph (193 km/h)
-
Applications: Agricultural & forestry aerial spraying
-
Serviceability: All parts available for replacement
