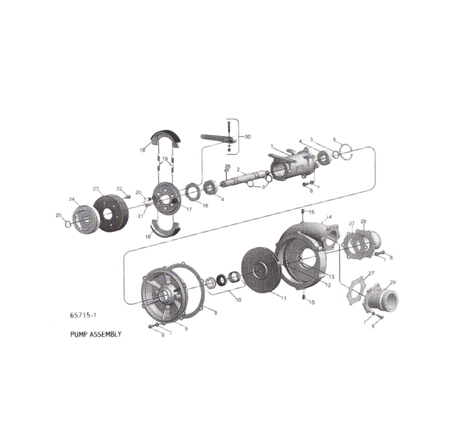

Agrinautics 65715-1 Pump Assembly INDIVIDUAL PARTS/DIAGRAM For Large Aircraft

---

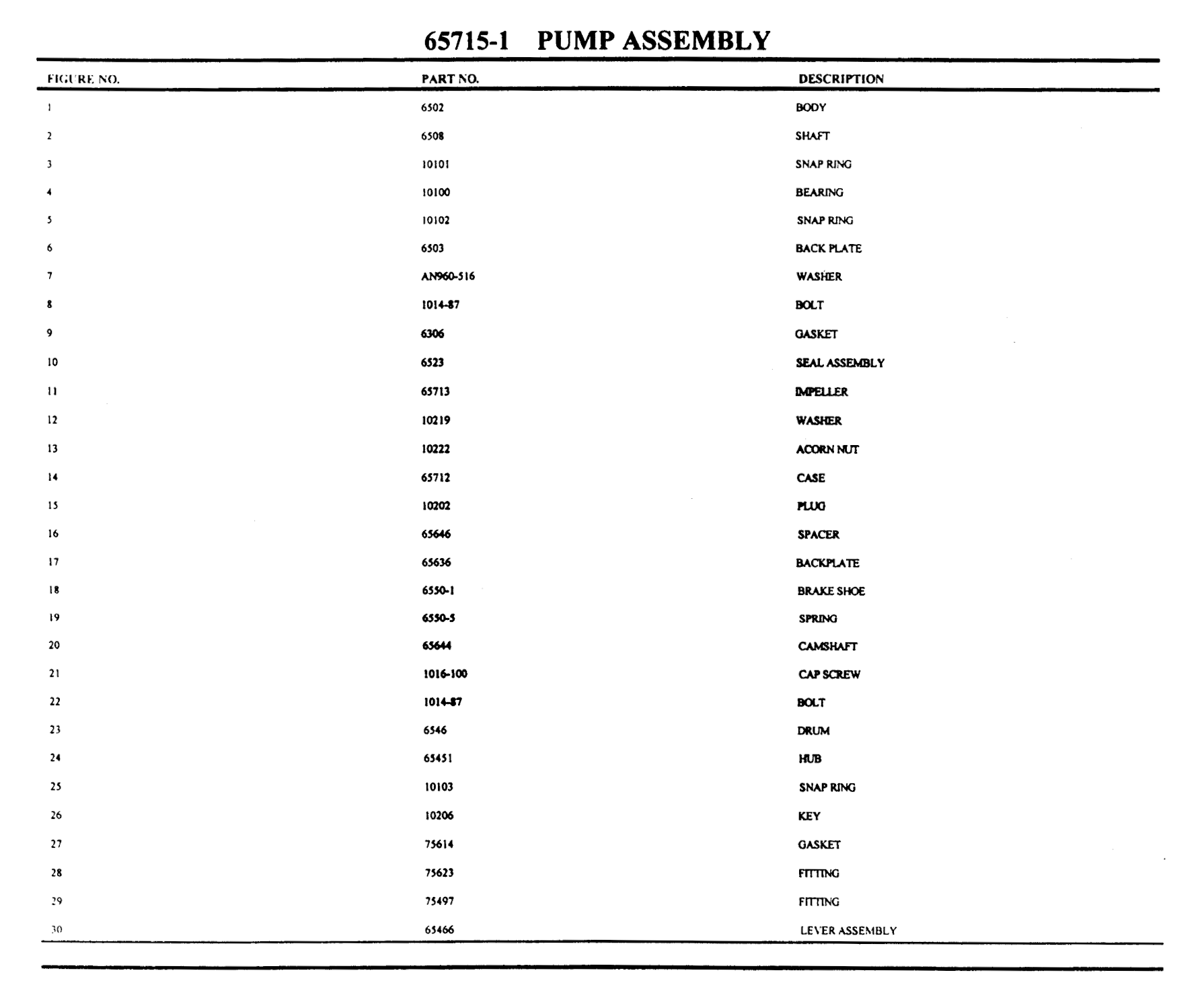

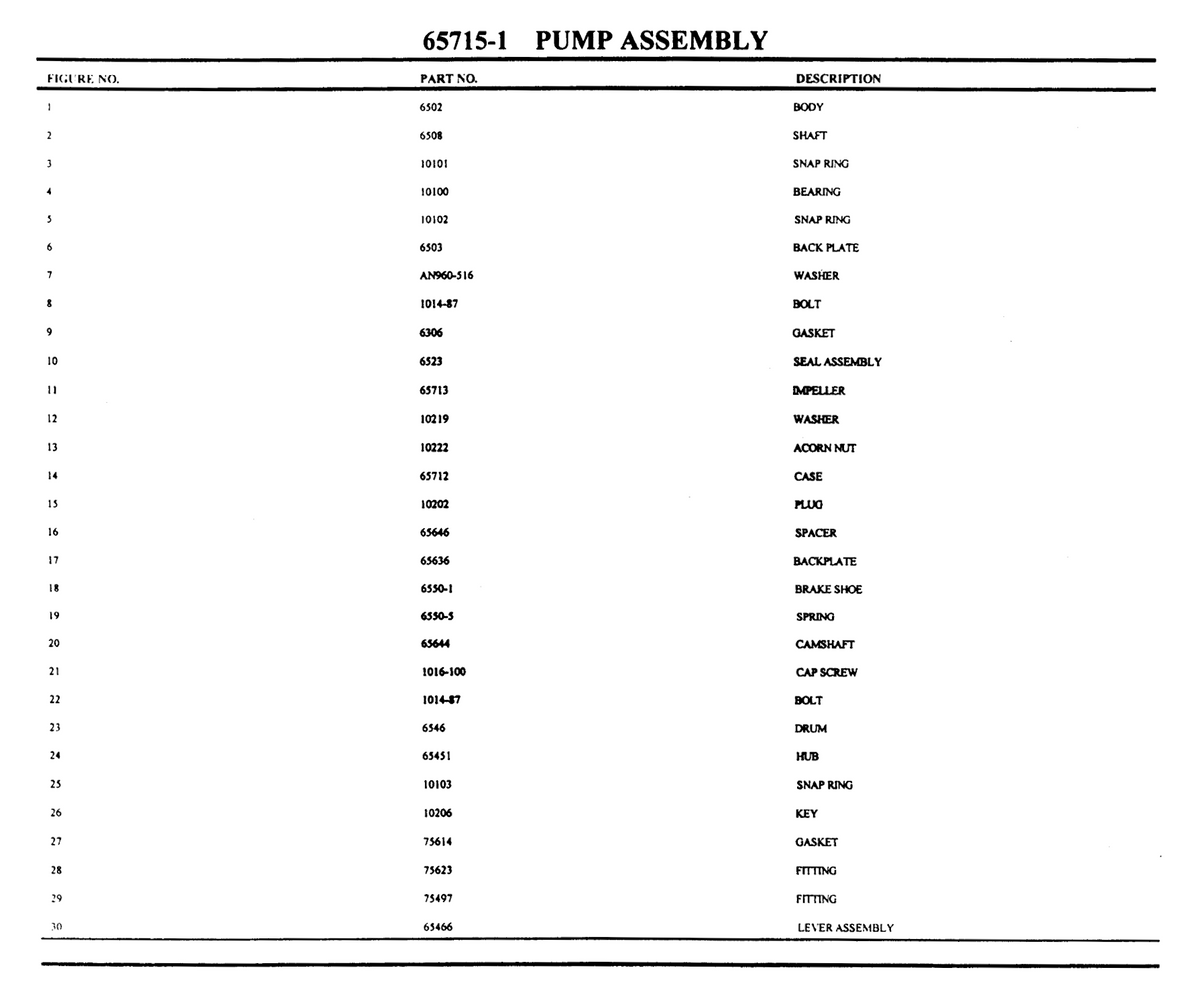

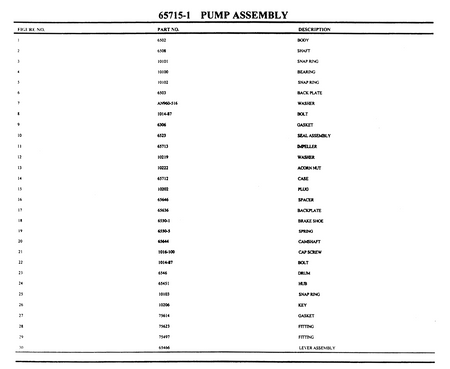

Select Part 1 – 6502 – Body 2 – 6508 – Shaft 3 – 10101 – Snap Ring 4 – 10100 – Bearing 5 – 10102 – Snap Ring 6 – 6503 – Back Plate 7 – AN960-516 – Washer 8 – 1014-87 – Bolt 9 – 6306 – Gasket 10 – 6523 – Seal Assembly 11 – 65713 – Impeller 12 – 10219 – Washer 13 – 10222 – Acorn Nut 14 – 65712 – Case 15 – 10202 – Plug 16 – 65646 – Spacer 17 – 65636 – Backplate 18 – 6550-1 – Brake Shoe 19 – 6550-5 – Spring 20 – 65644 – Camshaft 21 – 1016-100 – Cap Screw 22 – 1014-87 – Bolt 23 – 6546 – Drum 24 – 65451 – Hub 25 – 10103 – Snap Ring 26 – 10206 – Key 27 – 75614 – Gasket 28 – 75623 – Fitting 29 – 75497 – Fitting 30 – 65466 – Lever Assembly

1 – 6502 – Body - $400.00 USD 2 – 6508 – Shaft - $340.00 USD 3 – 10101 – Snap Ring - $10.00 USD 4 – 10100 – Bearing - $65.00 USD 5 – 10102 – Snap Ring - $10.00 USD 6 – 6503 – Back Plate - $350.00 USD 7 – AN960-516 – Washer - $0.00 USD 8 – 1014-87 – Bolt - $0.00 USD 9 – 6306 – Gasket - $10.00 USD 10 – 6523 – Seal Assembly - $100.00 USD 11 – 65713 – Impeller - $280.00 USD 12 – 10219 – Washer - $10.00 USD 13 – 10222 – Acorn Nut - $30.00 USD 14 – 65712 – Case - $475.00 USD 15 – 10202 – Plug - $5.00 USD 16 – 65646 – Spacer - $15.00 USD 17 – 65636 – Backplate - $75.00 USD 18 – 6550-1 – Brake Shoe - $80.00 USD 19 – 6550-5 – Spring - $10.00 USD 20 – 65644 – Camshaft - $60.00 USD 21 – 1016-100 – Cap Screw - $5.00 USD 22 – 1014-87 – Bolt - $5.00 USD 23 – 6546 – Drum - $100.00 USD 24 – 65451 – Hub - $240.00 USD 25 – 10103 – Snap Ring - $10.00 USD 26 – 10206 – Key - $0.00 USD 27 – 75614 – Gasket - $0.00 USD 28 – 75623 – Fitting - $0.00 USD 29 – 75497 – Fitting - $0.00 USD 30 – 65466 – Lever Assembly - $0.00 USD
