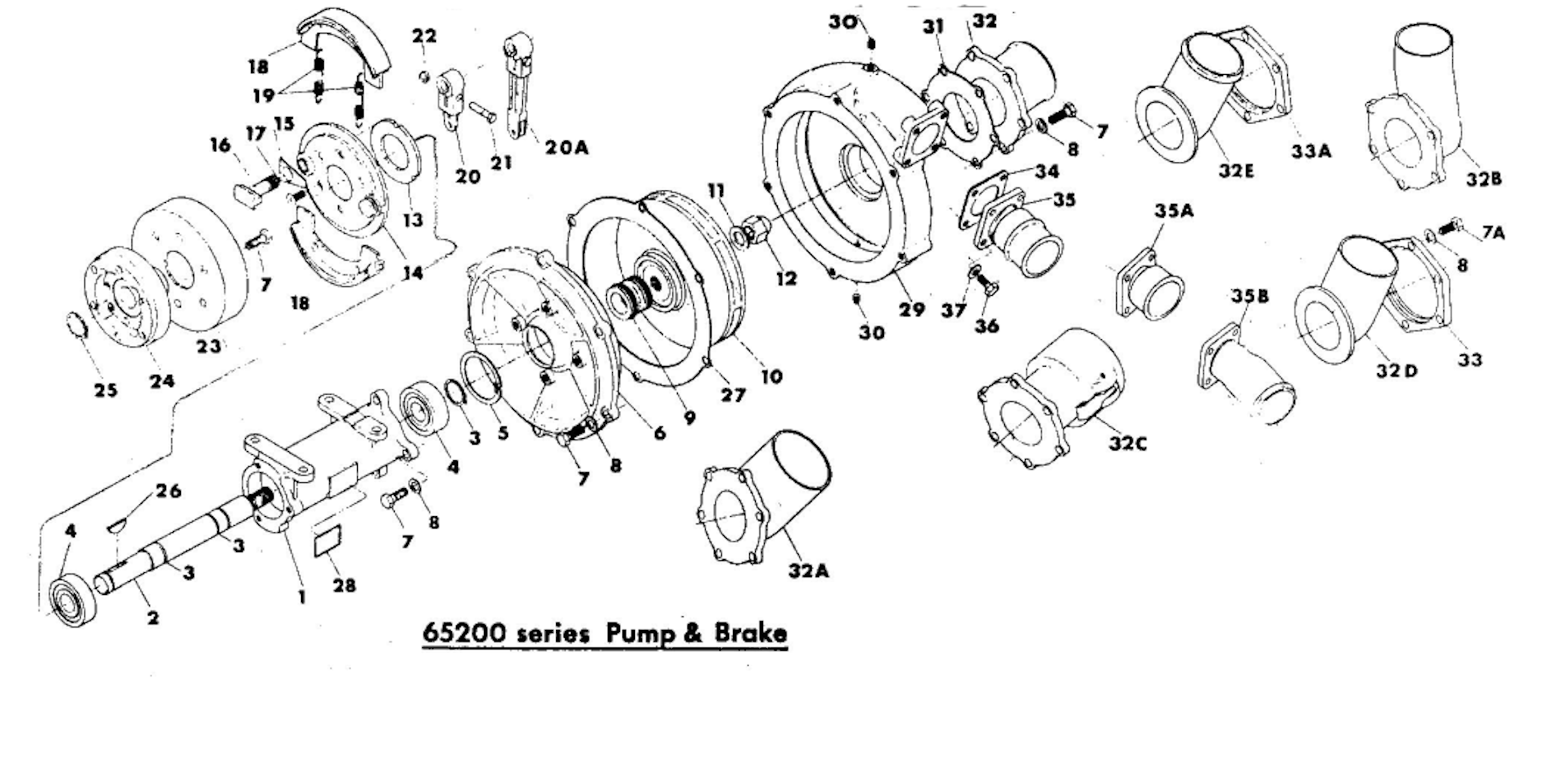

Agrinautics 65200 INDIVIDUAL PARTS/DIAGRAM Pump Assembly Medium Size Aircraft

---

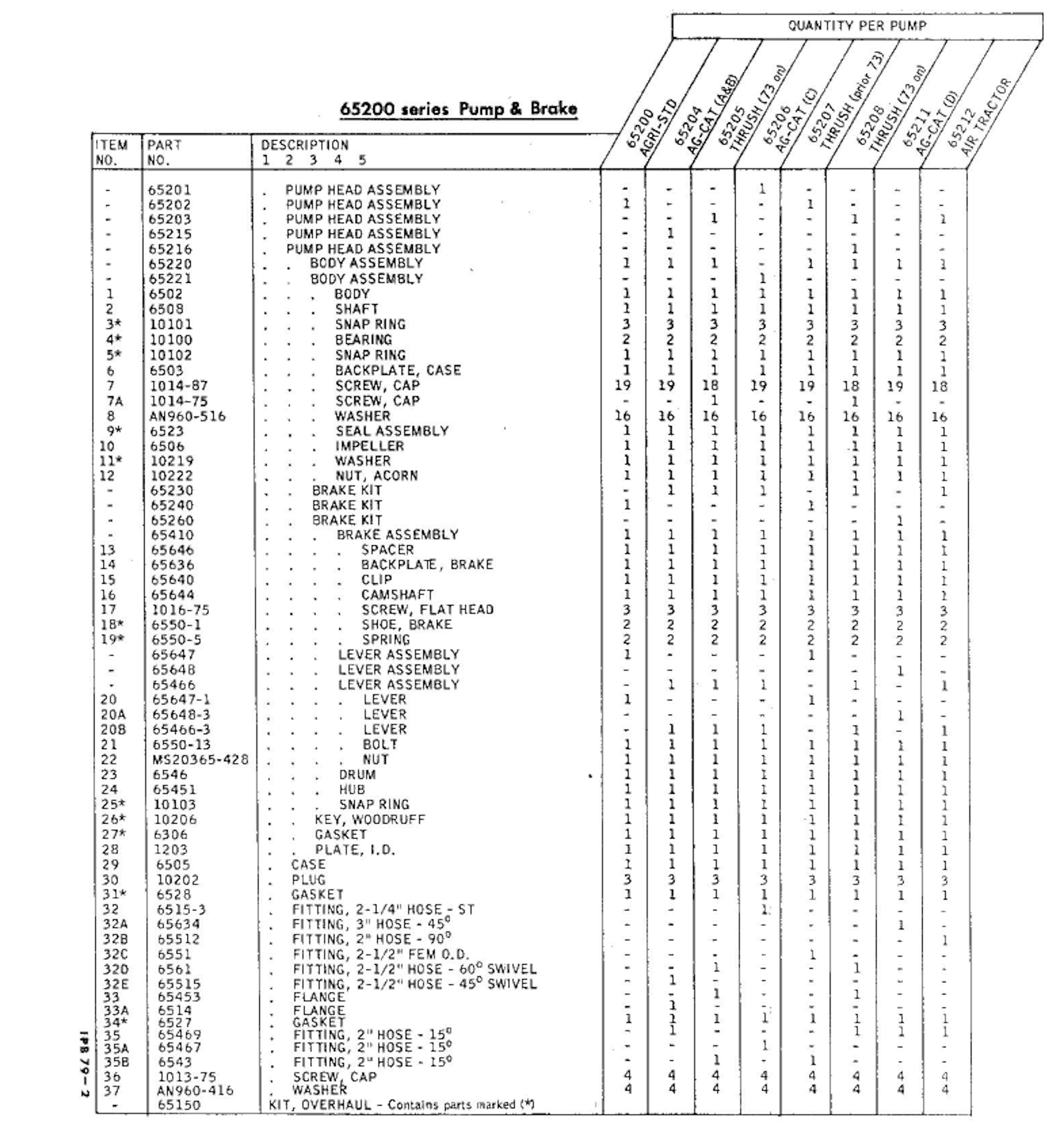

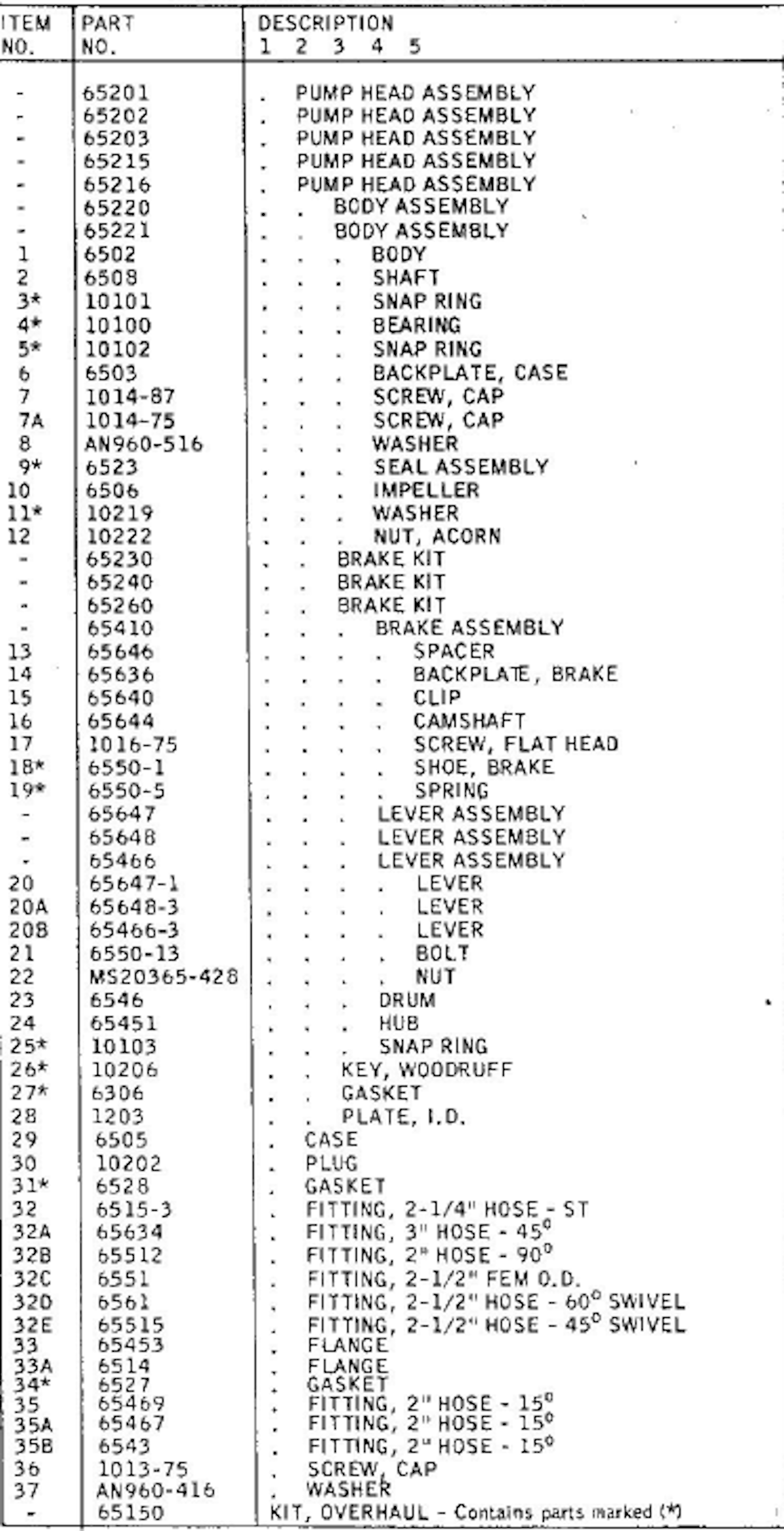

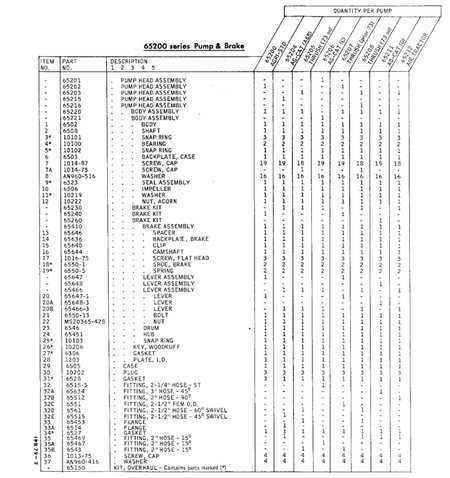

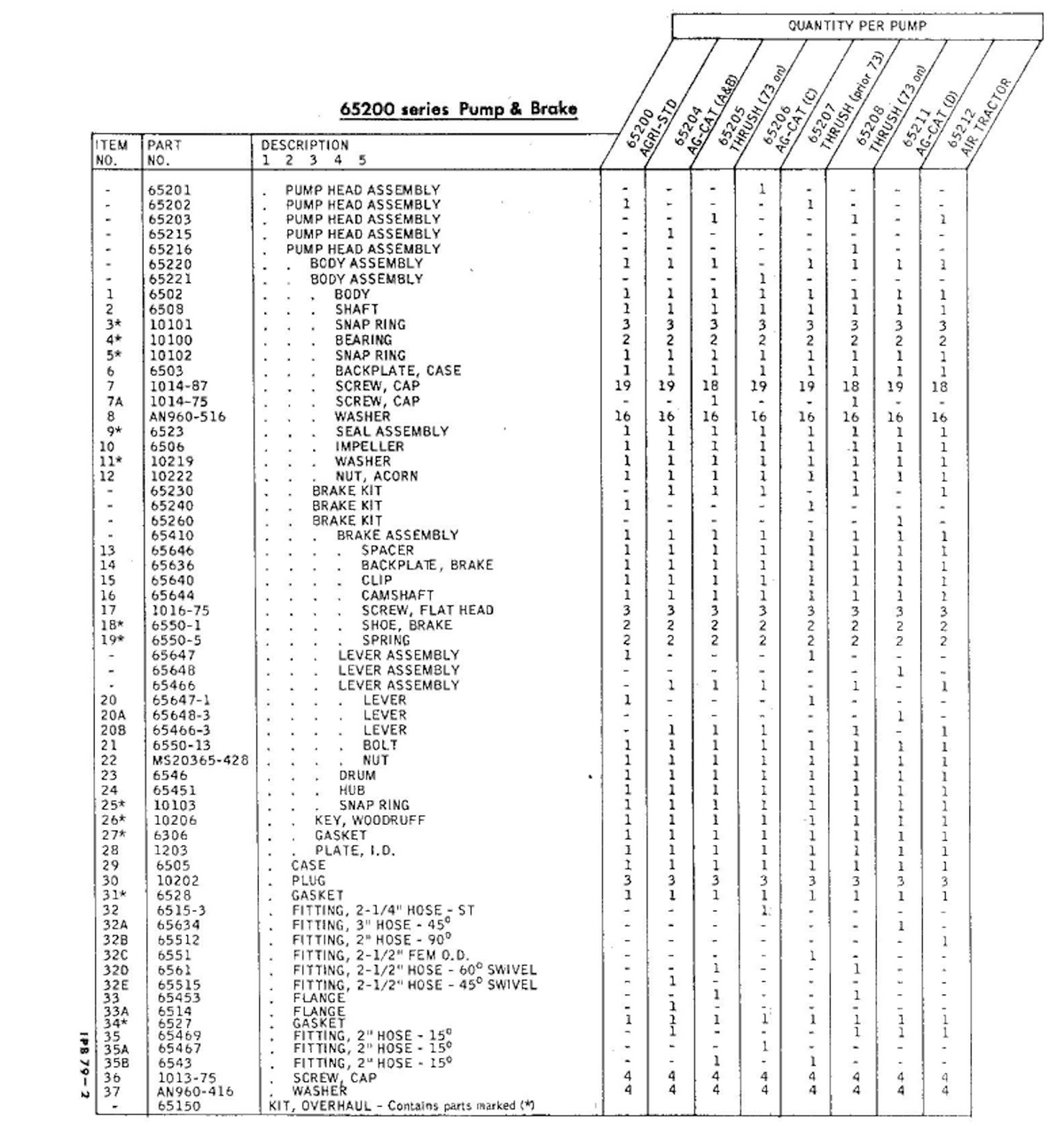

Part Selection - - 65201 - . PUMP HEAD ASSEMBLY | - - 65202 - . PUMP HEAD ASSEMBLY - - 65203 - . PUMP HEAD ASSEMBLY - - 65215 - . PUMP HEAD ASSEMBLY | - - 65216 - . PUMP HEAD ASSEMBLY | - - 65220 - . . BODY ASSEMBLY . | - - 65221 - . . BODY ASSEMBLY | 1 - 6502 - BODY 2 - 6508 - SHAFT 3. - 110101 - SNAP RING 4. - 10100 - . . . BEARING 5. - 10102 - . . . SNAP RING 6 - 6503 - . . . BACKPLATE, CASE 7. - 1014-87 - SCREW CAP 8. AN960-516 Washer 9. 6523 - SEAL ASSEMBLY 10. - 6506 - IMPELLER 11. - 10219 - WASHER 12. - 10222 - . NUT ACORN - - 65230 - . . BRAKE KIT - - 65240 - . . BRAKE KIT - - 65260 - . . BRAKE KIT - - 65410 - . . . BRAKE ASSEMBLY 13. - 65646 - SPACER 14. - 65636 - BACKPLATE 15. - 65640 - CLIP 16 - 65644 - CAMSRAFT 17 - 3016-75 - .SCREW 18. - 6550-1 - SHOE/BRAKE 19. - 6550-5 - SPRING - - 65647 - . . . LEVER ASSEMBLY - - 65648 - . . . LEVER ASSEMBLY - - 65466 - . . . LEVER ASSEMBLY 20. - 65647-1 - LEVER 20A. - 65648-3 - LEVER 20B. - 65466-3 - LEVER 21 - 6550-13 - BOLT 22 - MS20365-628 - NUT 23 - 6546 - DRUM 24 - 65451 - HUB 25. - 10103 - SNAP RING 26. - 210206 - WOODRUFF KEY 27. - 6306 - GASKET 28 - 1203 - PLATE 29 - 6505 - CASE 30 - 10202 - PLUG 31. - 6528 - GASKET 32 - 6515-3 - . FITTING, 2-1/4" HOSE - ST 32A - 65634 - . FITTING 3" HOSE - 45° 32B - 65512 - FITTING 2° HOSE - 90° 32C - 6551 - . FITTING 2-1/2" FEM 32D - 6561 - FITTING 2-1/2" HOSE - 60° SWIVEL 32E - 65515 - . FITTING 2-1/2" HOSE - 45° SWIVEL 33 - 65453 - . FLANGE 33A - 6514 - FLANGE 34. - 6527 - 2 GASKET 35 - 65469 - . FITTING, 2" HOSE ~ 15° 35A - 65467 -FITTING 2" HOSE - 15° 35B - 6543 - . FITTING 2" HOSE - 15° 36 - 1013-75 - . SCREW, CAP AN960-416 - |. WASHER - - 65150 - KIT

- - 65201 - . PUMP HEAD ASSEMBLY | - $1,266.70 USD - - 65202 - . PUMP HEAD ASSEMBLY - $1,262.81 USD - - 65203 - . PUMP HEAD ASSEMBLY - $1,267.68 USD - - 65215 - . PUMP HEAD ASSEMBLY | - $1,267.68 USD - - 65216 - . PUMP HEAD ASSEMBLY | - $0.00 USD - - 65220 - . . BODY ASSEMBLY . | - $0.00 USD - - 65221 - . . BODY ASSEMBLY | - $0.00 USD 1 - 6502 - BODY - $396.08 USD 2 - 6508 - SHAFT - $332.72 USD 3. - 110101 - SNAP RING - $0.00 USD 4. - 10100 - . . . BEARING - $61.31 USD 5. - 10102 - . . . SNAP RING - $5.62 USD 6 - 6503 - . . . BACKPLATE, CASE - $348.44 USD 7. - 1014-87 - SCREW CAP - $0.00 USD 8. AN960-516 Washer - $0.00 USD 9. 6523 - SEAL ASSEMBLY - $97.06 USD 10. - 6506 - IMPELLER - $320.23 USD 11. - 10219 - WASHER - $4.40 USD 12. - 10222 - . NUT ACORN - $27.77 USD - - 65230 - . . BRAKE KIT - $403.10 USD - - 65240 - . . BRAKE KIT - $368.15 USD - - 65260 - . . BRAKE KIT - $0.00 USD - - 65410 - . . . BRAKE ASSEMBLY - $168.78 USD 13. - 65646 - SPACER - $10.26 USD 14. - 65636 - BACKPLATE - $57.90 USD 15. - 65640 - CLIP - $0.00 USD 16 - 65644 - CAMSRAFT - $54.40 USD 17 - 3016-75 - .SCREW - $0.00 USD 18. - 6550-1 - SHOE/BRAKE - $80.00 USD 19. - 6550-5 - SPRING - $10.00 USD - - 65647 - . . . LEVER ASSEMBLY - $53.03 USD - - 65648 - . . . LEVER ASSEMBLY - $0.00 USD - - 65466 - . . . LEVER ASSEMBLY - $52.80 USD 20. - 65647-1 - LEVER - $0.00 USD 20A. - 65648-3 - LEVER - $0.00 USD 20B. - 65466-3 - LEVER - $0.00 USD 21 - 6550-13 - BOLT - $0.00 USD 22 - MS20365-628 - NUT - $0.00 USD 23 - 6546 - DRUM - $83.67 USD 24 - 65451 - HUB - $226.15 USD 25. - 10103 - SNAP RING - $5.90 USD 26. - 210206 - WOODRUFF KEY - $3.74 USD 27. - 6306 - GASKET - $8.15 USD 28 - 1203 - PLATE - $0.00 USD 29 - 6505 - CASE - $453.96 USD 30 - 10202 - PLUG - $2.31 USD 31. - 6528 - GASKET - $8.24 USD 32 - 6515-3 - . FITTING, 2-1/4" HOSE - ST - $70.00 USD 32A - 65634 - . FITTING 3" HOSE - 45° - $95.10 USD 32B - 65512 - FITTING 2° HOSE - 90° - $80.27 USD 32C - 6551 - . FITTING 2-1/2" FEM - $247.54 USD 32D - 6561 - FITTING 2-1/2" HOSE - 60° SWIVEL - $75.00 USD 32E - 65515 - . FITTING 2-1/2" HOSE - 45° SWIVEL - $69.56 USD 33 - 65453 - . FLANGE - $52.78 USD 33A - 6514 - FLANGE - $34.83 USD 34. - 6527 - 2 GASKET - $8.24 USD 35 - 65469 - . FITTING, 2" HOSE ~ 15° - $82.96 USD 35A - 65467 -FITTING 2" HOSE - 15° - $87.82 USD 35B - 6543 - . FITTING 2" HOSE - 15° - $82.96 USD 36 - 1013-75 - . SCREW, CAP - $0.00 USD AN960-416 - |. WASHER - $0.00 USD - - 65150 - KIT - $336.53 USD
