AFS Short Boom to Satloc Falcon Relay Interface (4-Channel)

4-Channel Relay Conversion Box for AFS Short Booms to Satloc Falcon

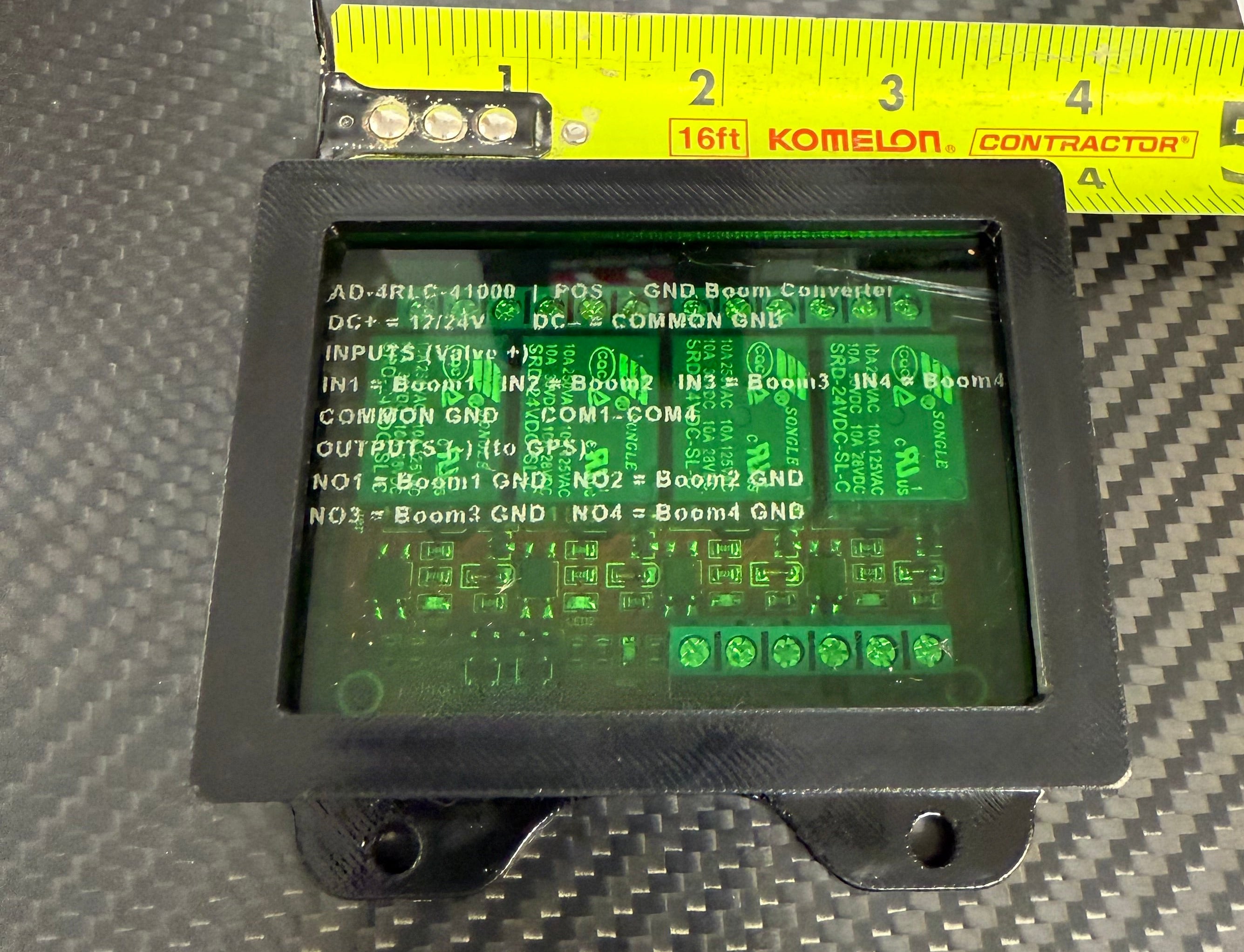

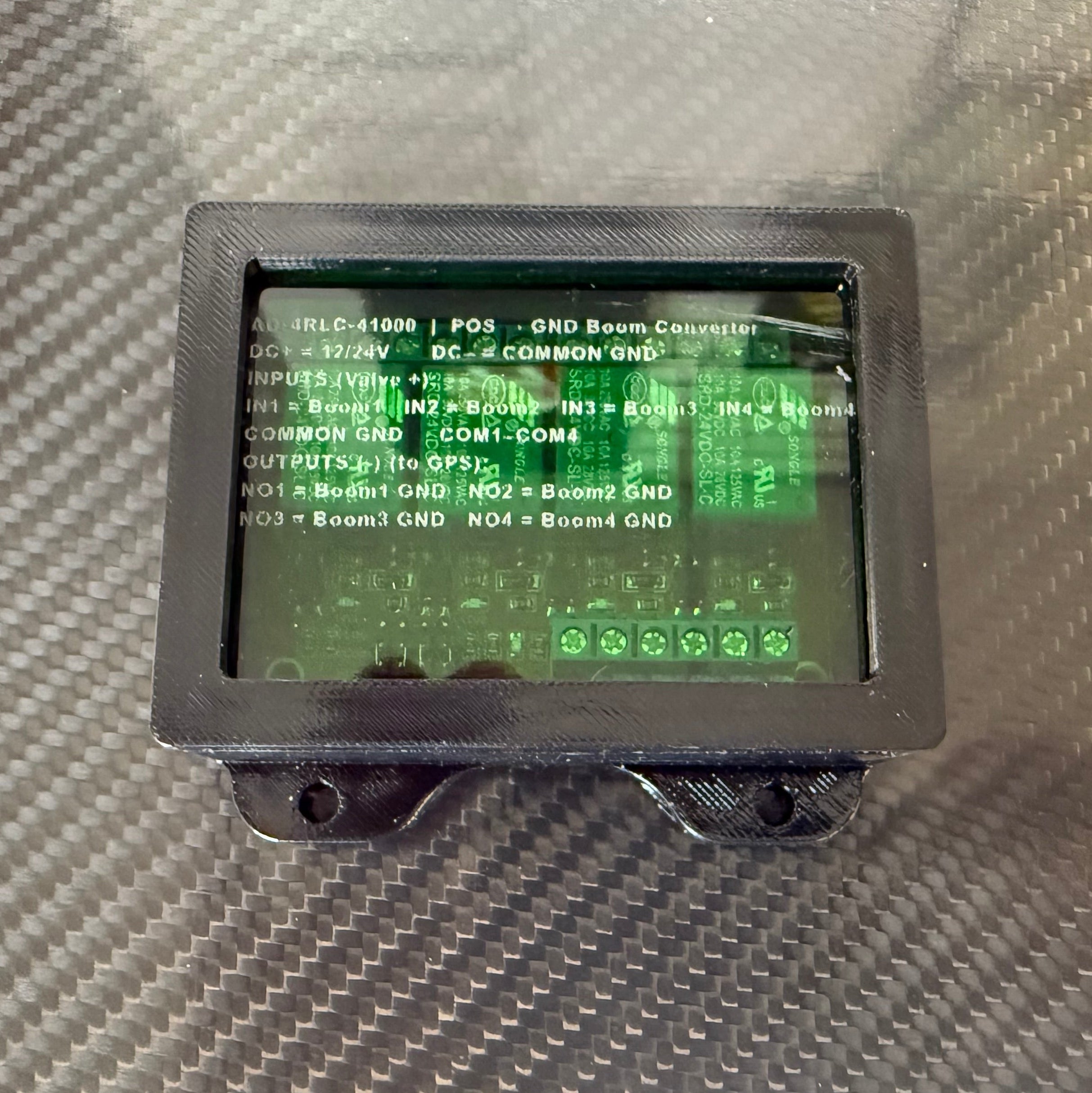

The AD-4RLC-41000 relay conversion box is designed to convert the AeroFlow Systems short-boom +24V output into the ground-trigger signal required by the Satloc Falcon and Falcon Pro. This allows mechanics and operators to upgrade aircraft to a Falcon system while keeping the existing AFS boom switches and valves.

AFS outputs a positive boom signal, while the Falcon requires a negative (ground) sense input. This relay box bridges that mismatch safely, using isolated relay circuits to provide a clean, reliable ground signal to the Falcon for accurate boom logging and flow-control operation.

Key Features

• Converts AFS +24V boom outputs into ground signals for Satloc Falcon
• Supports four boom circuits (short booms or standard booms)
• COM terminals tied to aircraft ground for correct Falcon signal type
• NO terminals output ground to Falcon only when boom is ON
• Prevents feeding voltage into Falcon boom-sense inputs

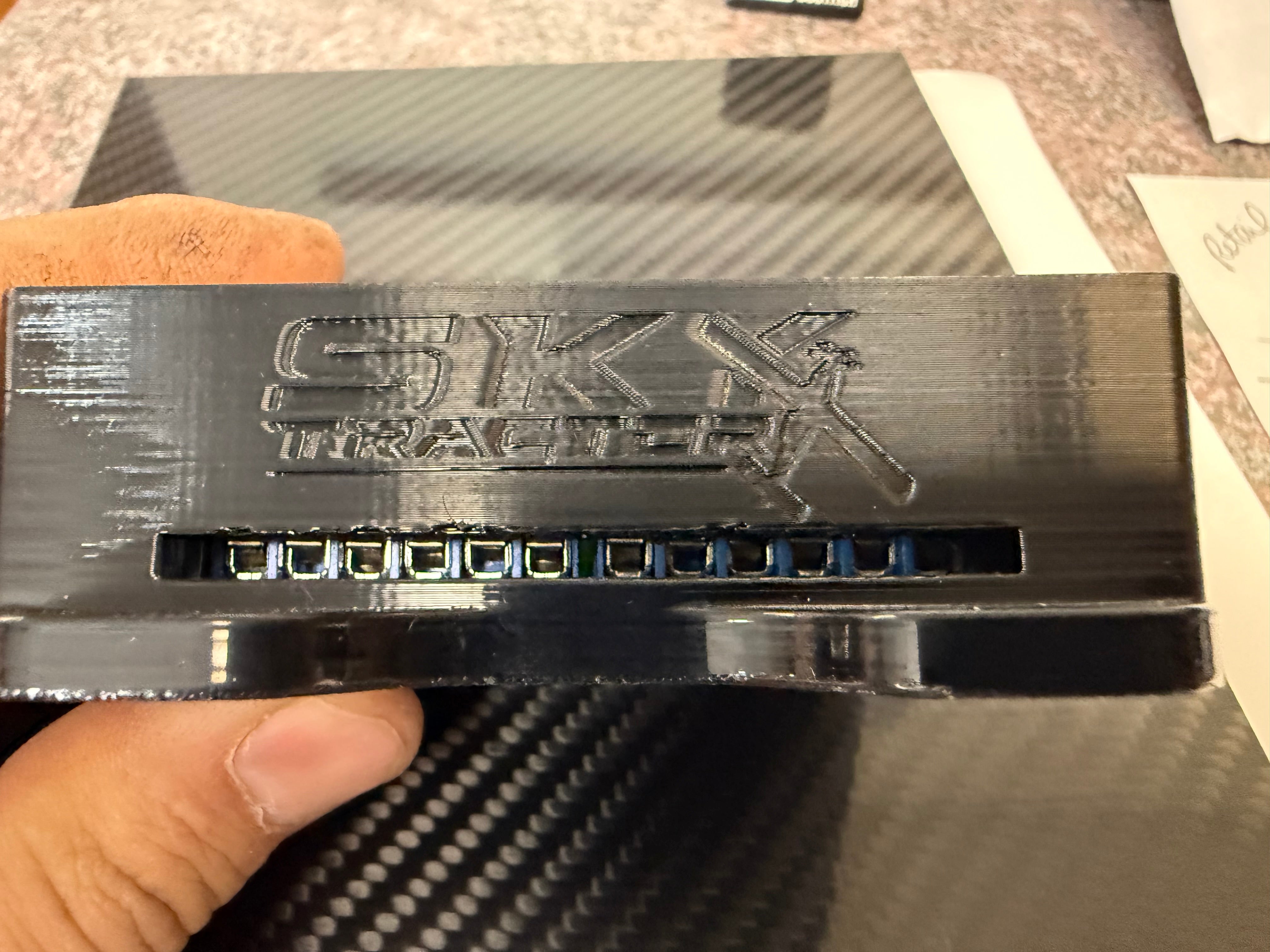

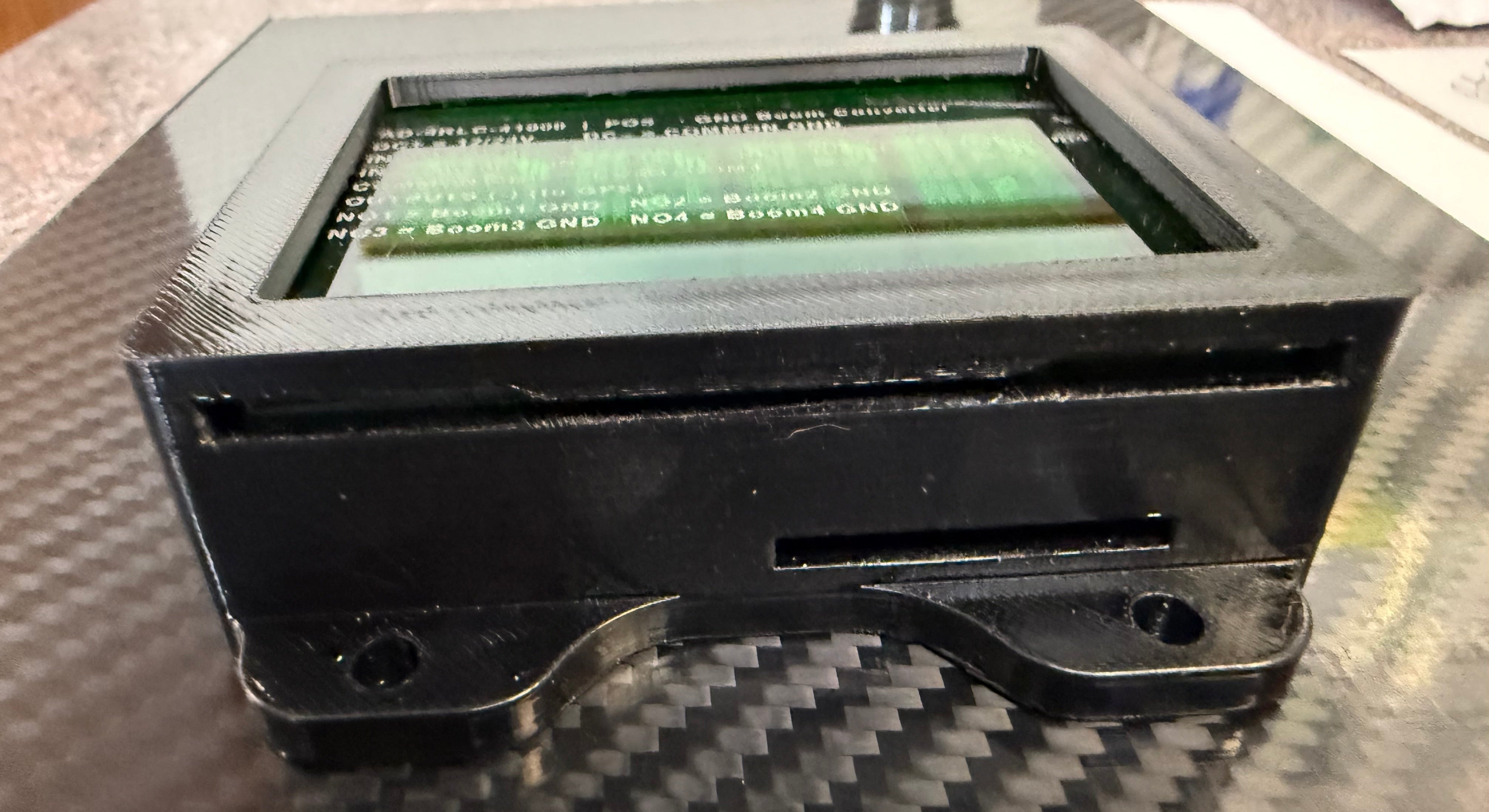

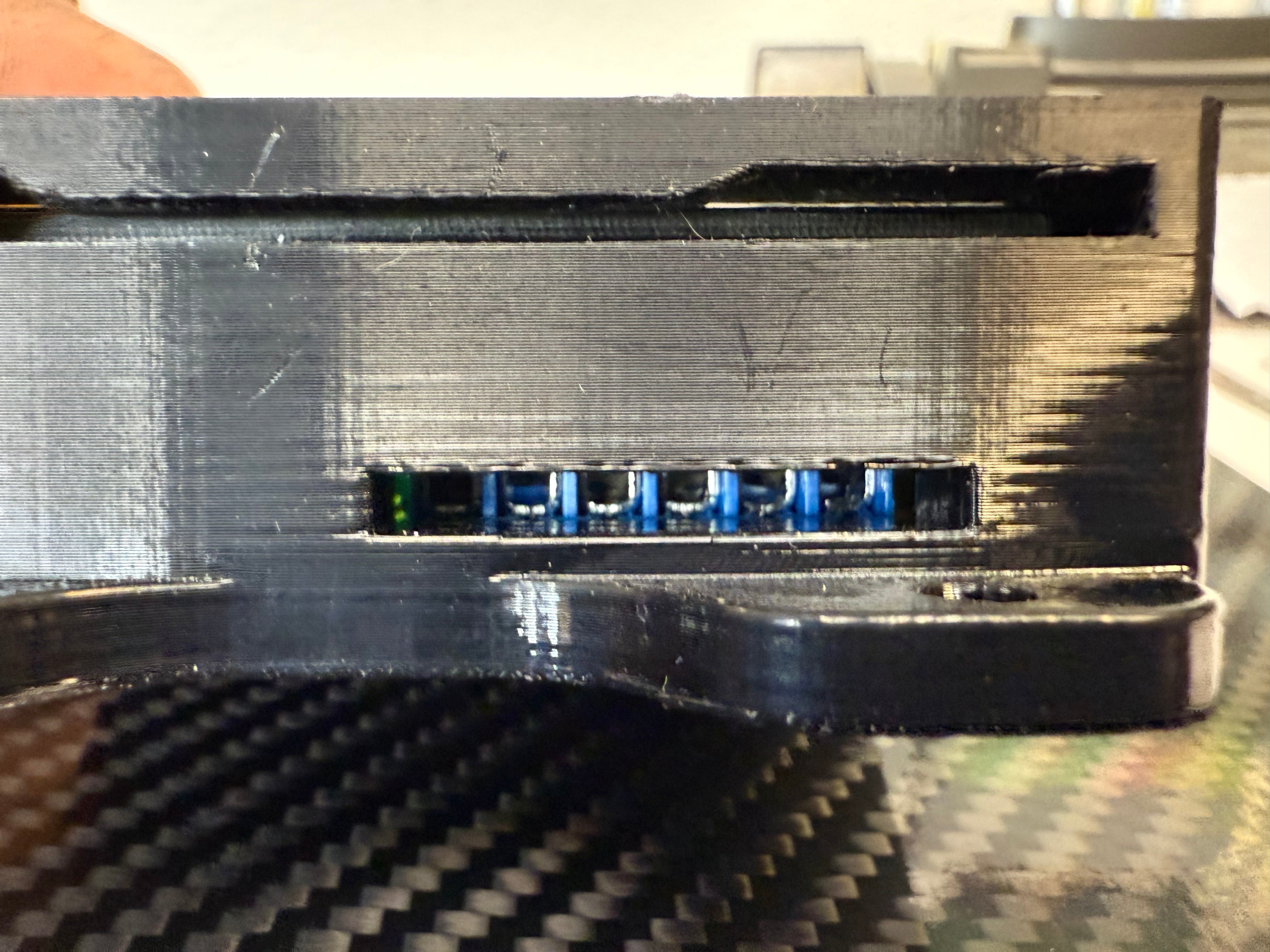

• Compact, durable housing for easy mounting on relay lids or avionics panels
• Ideal for AFS, Reabe, Kawak, Lane, and other +24V boom systems
• Built for agricultural aviation environments

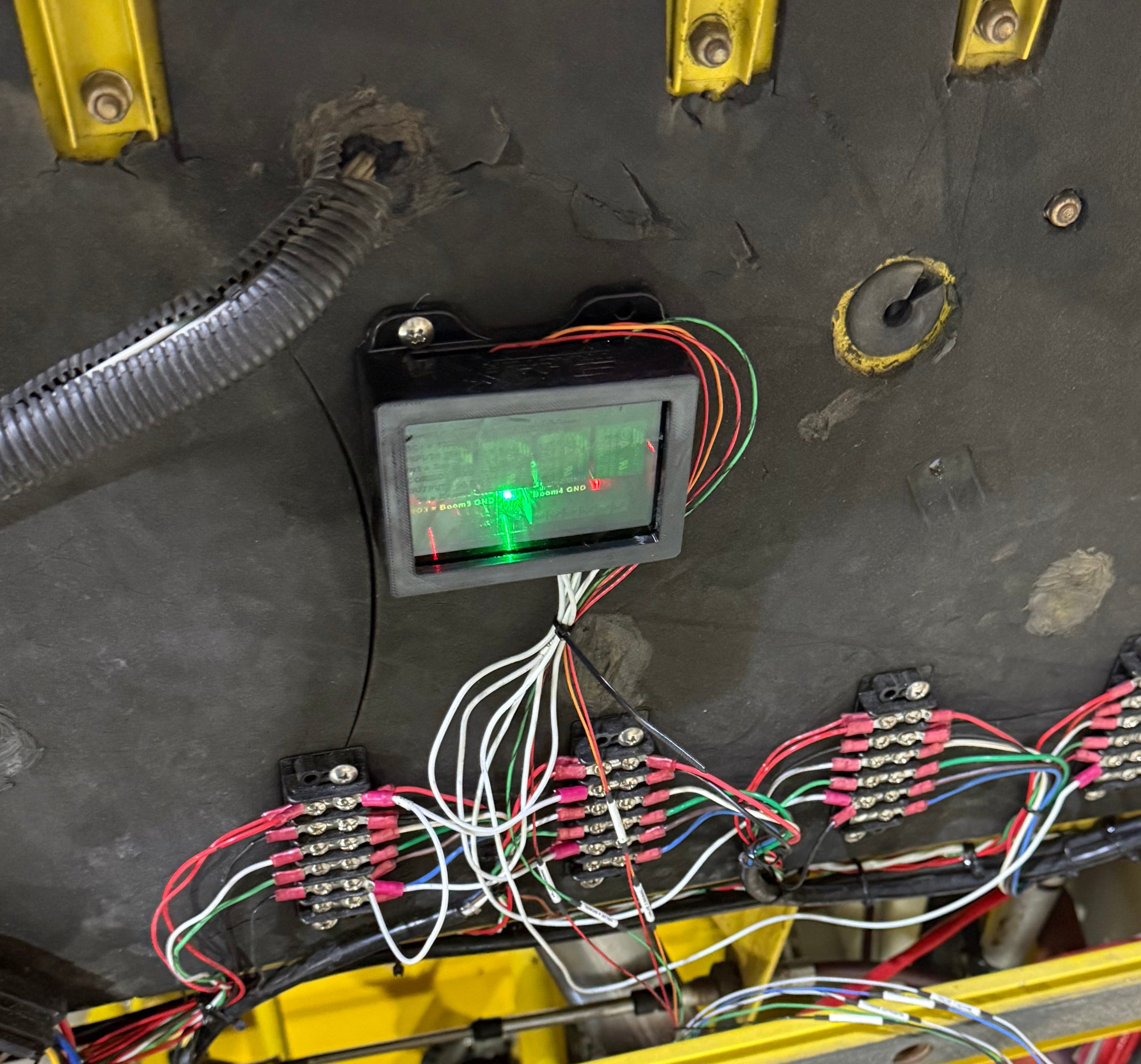

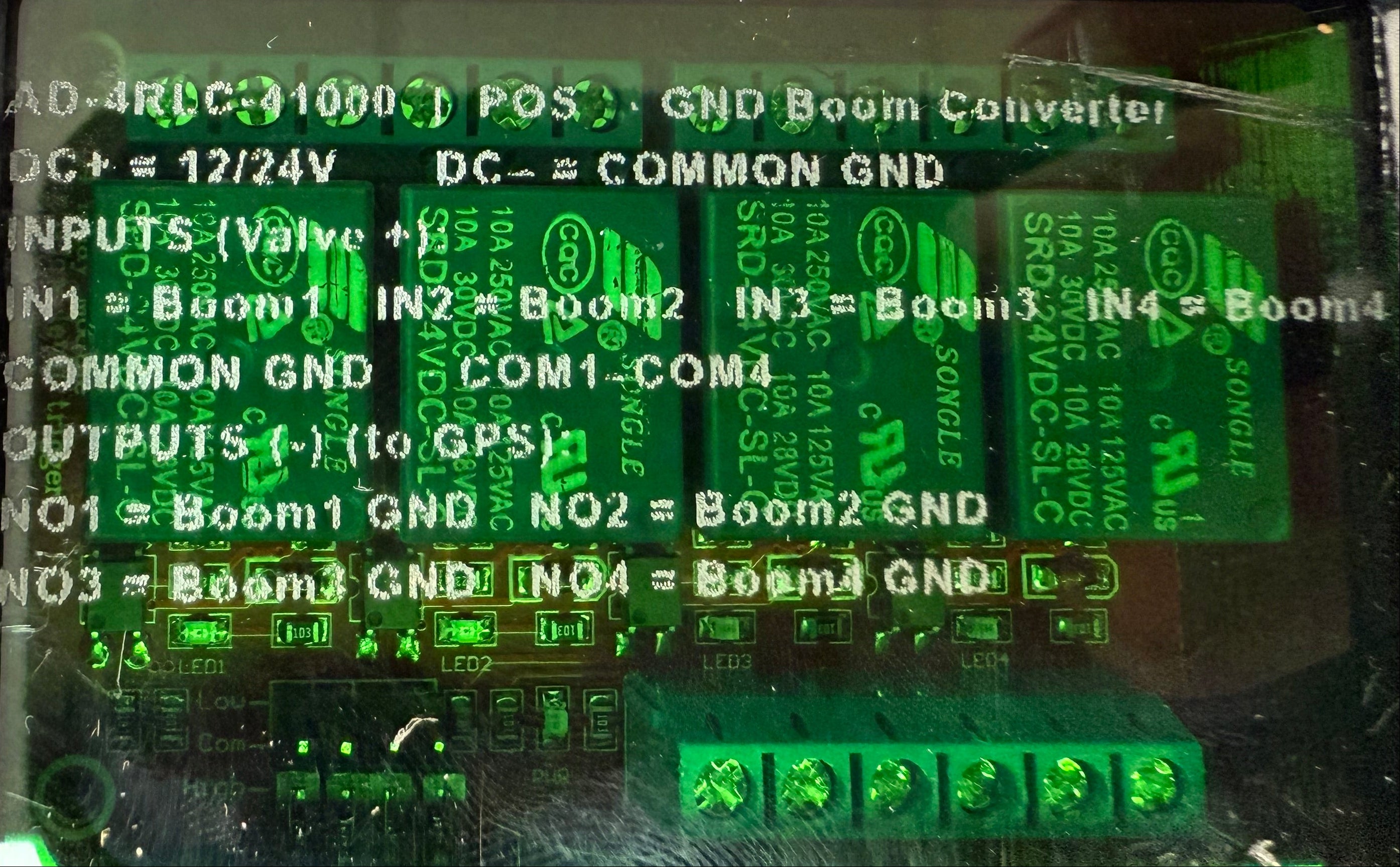

Simplified Wiring Instructions

1. Power

• VCC → Aircraft +24V (or +12V)
• GND → Aircraft Ground

2. Inputs From AFS Boom Valves

• AFS Boom 1 +24V → IN1
• AFS Boom 2 +24V → IN2
• AFS Boom 3 +24V → IN3
• AFS Boom 4 +24V → IN4

(These energize the relay coils only.)

3. Outputs to Satloc Falcon

• COM terminals → Aircraft Ground (tie all COMs to ground)
• NO terminals → Falcon Boom Sense wires (Boom 1–4)

When AFS sends +24V to a boom valve, the relay closes and the Falcon receives a clean ground signal—exactly what it requires to detect boom ON/OFF.

Why This Conversion Box Is Needed

AFS systems output positive voltage, while the Falcon requires a  (-). Connecting these systems directly can damage avionics or result in incorrect boom logging. This relay box provides the correct isolation and conversion to protect the Falcon while making the upgrade simple and mechanic-friendly.

Compatible With

• Satloc Falcon & Falcon Pro
• AFS Short Boom Systems
• Reabe, Kawak, Lane, and similar +24V boom valves
• Air Tractor, Thrush, Ag-Cat, Pawnee, and more
