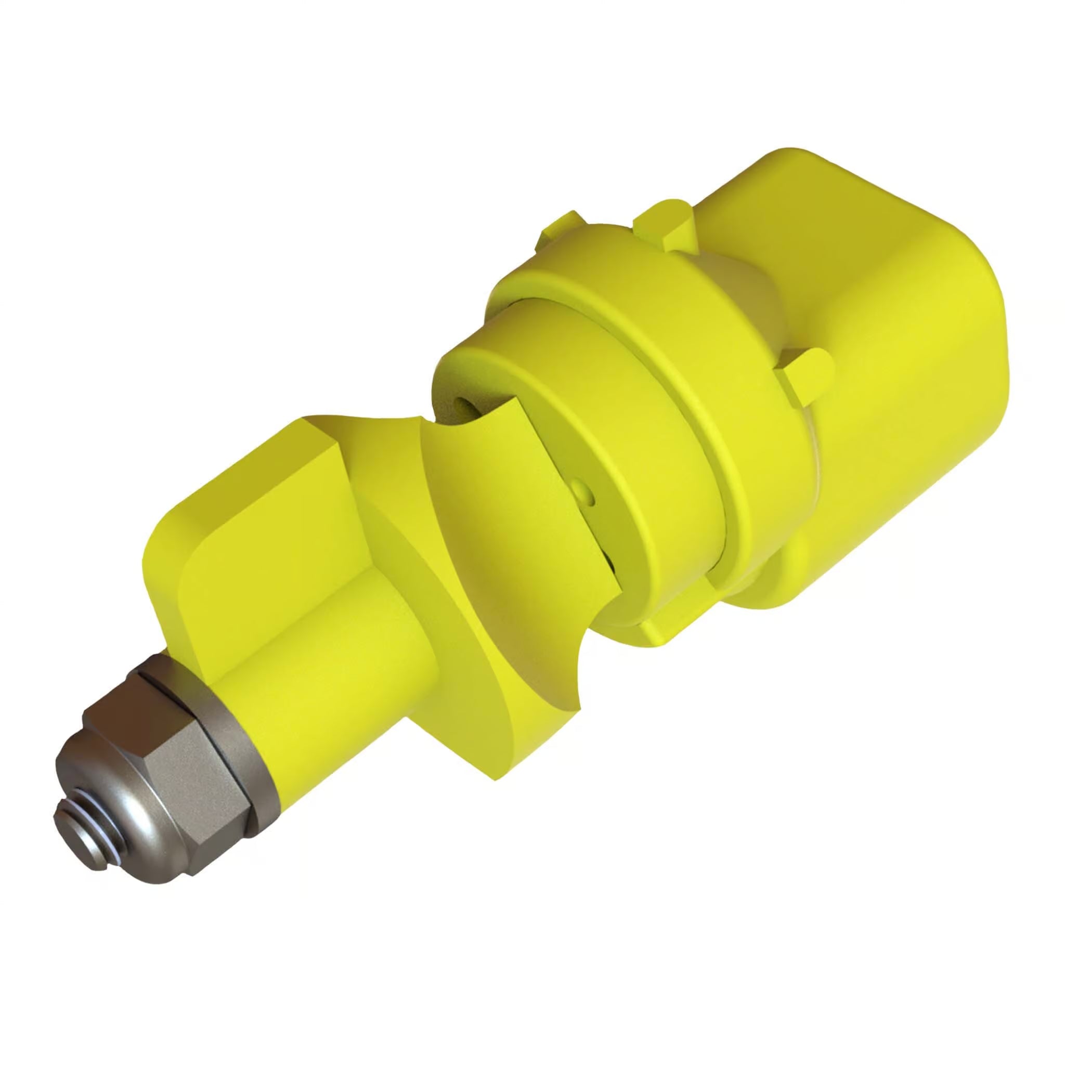

CP Nozzle | CP-03-05 Poly Aerial Nozzle – 5 Orifice with 3‑Way Deflection

CP‑03‑05 Poly Aerial Nozzle with Five‑Orifice Selector (no shut‑off) and 3‑Way Deflector. The CP‑03 series is designed for aerial applications up to ~120 mph, covering droplet spectrums from very coarse to fine.

• Selector Plate: 5 orifices (no shut‑off) — sizes .062, .078, .093, .125, .172
• Deflection planes (3‑Way): 30°, 55°, 90°
• Body/Material: Poly aerial body
• Typical operating speed: Up to ~120 mph (193 km/h)
• Applications: Agricultural & forestry aerial spraying
• Serviceability: All parts available for replacement
